Mini Industrial Web Managed 5 Ports Ethernet Switch 12~48V DC Input

चीन E-link China Technology Co., Ltd. प्रमाणपत्र
चीन E-link China Technology Co., Ltd. प्रमाणपत्र
The engineer solved our problem very quick, and the service is very good. Very professional factory.

—— Robert Lichtenstein-Canada

I had no concern, was buying and testing, so equipment is ok. So equipment and logistic is ok, we keep ordering and making business.

—— Anek – Thailand

I'm very satisfied with the media converter received, the OEM order quality is good.

—— Faize Akçaba-Turkey

E-link Sales are very professional, they give me not only product, but also solution. All E-link Fiber Media Converters and PoE Switches works well.

—— Patrícia Maia-Brazil

मैं अब ऑनलाइन चैट कर रहा हूँ

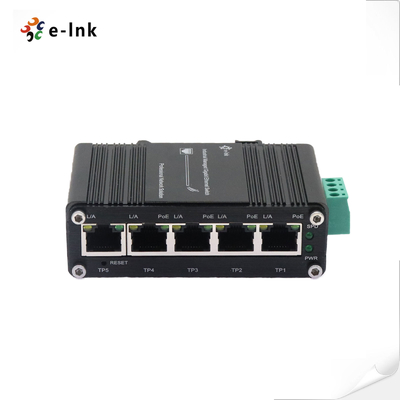

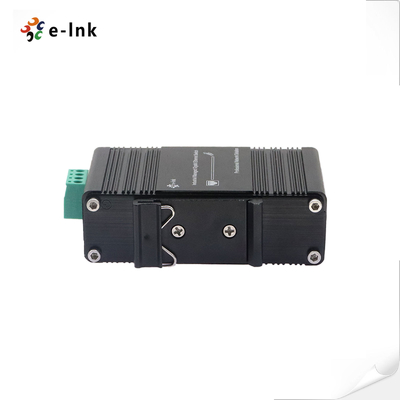

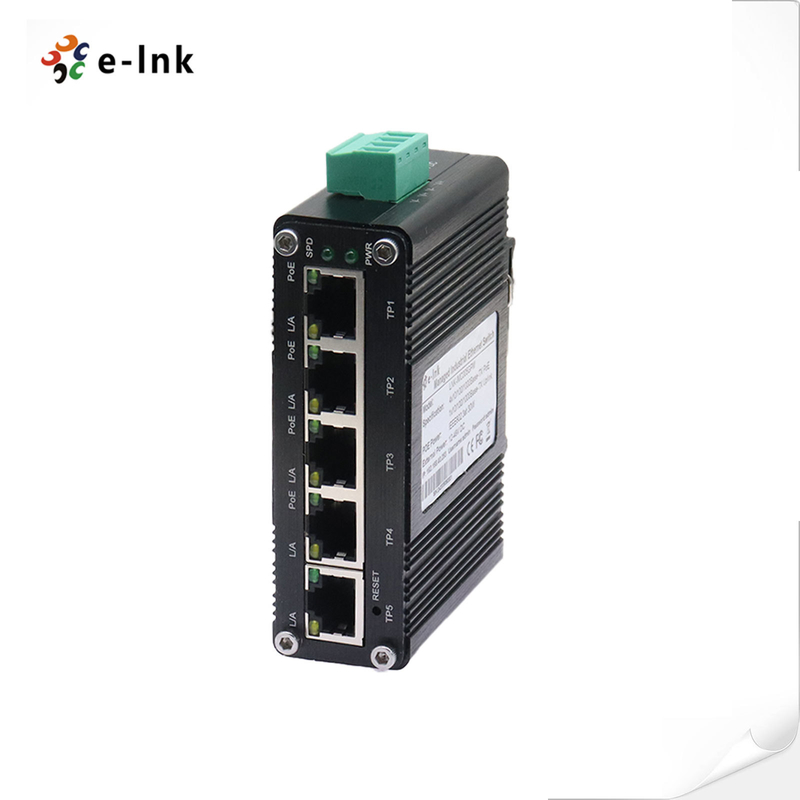

Mini Industrial Web Managed 5 Ports Ethernet Switch 12~48V DC Input

Mini Industrial Web Managed 5 Ports Ethernet Switch 12~48V DC Input
Mini Industrial Web Managed 5 Ports Ethernet Switch 12~48V DC Input Mini Industrial Web Managed 5 Ports Ethernet Switch 12~48V DC Input Mini Industrial Web Managed 5 Ports Ethernet Switch 12~48V DC Input Mini Industrial Web Managed 5 Ports Ethernet Switch 12~48V DC Input

बड़ी छवि :  Mini Industrial Web Managed 5 Ports Ethernet Switch 12~48V DC Input

उत्पाद विवरण:
Place of Origin: China
ब्रांड नाम: E-link
प्रमाणन: CE/FCC/Rohs
Model Number: LNK-IMC005GPM
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 1 pc
मूल्य: US$39.9/pc
Packaging Details: 1 piece in 1 carton box for Industrial Ethernet POE Switch
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
विस्तृत उत्पाद विवरण
Input Power:: 12~48V DC (Terminal Block) Power Consumption:: <125W (Non-PoE<6W)
Size: 95 x 70 x 29 mm Mounting Options: DIN-Rail / Wall-mount
Weight:: 0.25Kg Casing: Aluminum Case
प्रमुखता देना:

Mini Industrial Web Managed Ethernet Switch

,

5 Ports Ethernet Switch 48V

,

Web Managed 5 Ports Ethernet Switch

Mini Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch
Model: LNK-IMC005GPM
Overview

LNK-IMC005GPM Industrial PoE+ Managed Switch
Key Features:
- 4×10/100/1000BASE-T PoE+ ports (802.3at, 30W/port)
- 1×10/100/1000T uplink port
- 12-48V DC wide input, -40~80°C operation
- DIN-rail/wall mount, IP40 rugged housing
- CE/FCC certified, 100% burn-in tested
Applications:
✓ Industrial automation
✓ ITS/transportation systems
✓ Military/utility harsh environments

Features

  • 5 x 10/100/1000BASE-T ports
  • 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ (Port-1 to Port-4)
  • Supports 802.3x Flow control
  • Supports WEB Management
  • Supports DIN-Rail and Wall-mount installation
  • Up to 120-watt PoE budget (48V DC),
  • -40°C to 80°C (-40°F to 176°F) operating temperature

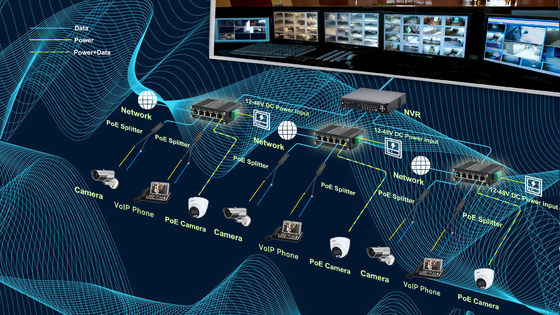

Application
Mini Industrial Web Managed 5 Ports Ethernet Switch 12~48V DC Input 0
Technical Indexes

Ethernet
Standards:IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3at Power over Ethernet Plus PSE
IEEE 802.3af Power over Ethernet Plus
Forward & Filtering Rate:14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer:1Mbits
Packet Length:10Kbytes
MAC Address Table:8K
Switch Fabric:10Gbps/non-blocking
Exchange PropertyBackplane bandwidth: 20Gbps; Packet forwarding rate:14.88Mpps
Connector:

5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports

4 ports with 802.3at PoE+ (Ports 1 to 4)

PoE (Power over Ethernet)
Standard:IEEE802.3af/at
Port:RJ45
Power Pin Assignment4/5(+), 7/8(-)

PoE Budget:

Up to 120-watt PoE budget (48VDC),

90-watt PoE budget (24VDC),

60-watt PoE budget (12VDC)

Environmental
Operating Temperature:-40°C to 80°C (-40°F to 176°F)
Storage Temperature:-40°C to 85°C (-40°F to 185°F)
Relative Humidity:5% to 95% non-condensing
MTBF> 200,000 hrs
Electrical and Mechanical
Input Power:12~48VDC (Terminal Block)
Power Consumption:<125W (Non-PoE<6W)
Power Input Overload:Automatic Resettable
Reverse Polarity:Present
Reset ButtonSupport
Dimensions (WxDxH):95 x 70 x 29 mm
Weight:0.25KG
Casing:Aluminum Case
Mounting Options:DIN-Rail / Wall-mount
LED Indicators
PWRPower
SPDData rate
L/ALink/Activity
PoEPoE Status
WEB Management Features
System SettingsDevice Info; Account Settings; Restoring; Reboot; Upgrade
Port ManagementPort Settings; Port Mirroring; Port Statistics; Rate Limit
VLAN Settings802.1Q VLAN; PVID Settings; Hybrid Port
QOS SettingsPriority Selection; Scheduling Mode
Loop DetectionSupport
Saving SettingsGet Configuration; Restore Configuration; Saving Configuration
Default IP192.168.40.253
Default User Nameadmin
Default Passwordadmin

Order Information

ModelDescription
LNK-IMC005GPMMini Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch
Mounting Options► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options

► Power Supply is to be purchased separately

► Recommend MeanWell NDR-120-48
