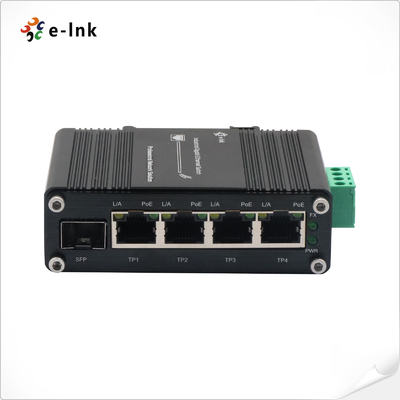

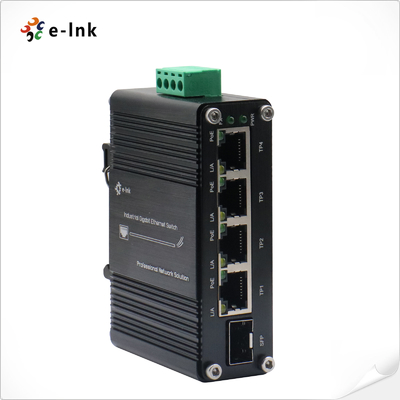

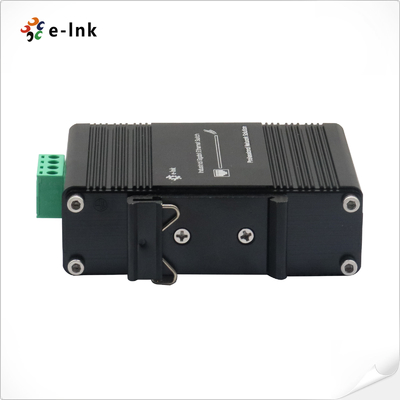

Mini Industrial Fiber Ethernet Switch 4 Port 10/100/1000T To 1-Port SFP Uplink Gigabit PoE Voltage Booster

Mini Industrial Fiber Ethernet Switch 4 Port 10/100/1000T To 1-Port SFP Uplink Gigabit PoE Voltage Booster
Mini Industrial Fiber Ethernet Switch 4 Port 10/100/1000T To 1-Port SFP Uplink Gigabit PoE Voltage Booster Mini Industrial Fiber Ethernet Switch 4 Port 10/100/1000T To 1-Port SFP Uplink Gigabit PoE Voltage Booster Mini Industrial Fiber Ethernet Switch 4 Port 10/100/1000T To 1-Port SFP Uplink Gigabit PoE Voltage Booster Mini Industrial Fiber Ethernet Switch 4 Port 10/100/1000T To 1-Port SFP Uplink Gigabit PoE Voltage Booster

बड़ी छवि :  Mini Industrial Fiber Ethernet Switch 4 Port 10/100/1000T To 1-Port SFP Uplink Gigabit PoE Voltage Booster

उत्पाद विवरण:
Place of Origin: China
ब्रांड नाम: E-link
प्रमाणन: ISO9001, CE, RoHS, FCC
Model Number: LNK-IMC104GP-SFP
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 1PCS
मूल्य: US$29.9/pc
Packaging Details: PoE Switch Standard Export Package
Delivery Time: 3~5 working days
Payment Terms: Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability: 5000pcs per month
विस्तृत उत्पाद विवरण
Product Name: Industrial 4 Port PoE Switch Data Rate: 10/100/1000Mbps
PoE Port: 4 Port 10/100/1000T 802.3at Uplink Port: 1 Port 10/100/1000T SFP Uplink
Input Power: 12~48V DC wide range Weight: 0.25KG
Dimensions (WxDxH): 95 x 70x 29mm Mounting Options: DIN-Rail / Wall-mount
प्रमुखता देना:

10/100/1000T Industrial Fiber Ethernet Switch

,

Mini Industrial Fiber Ethernet Switch

Mini Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Ethernet Switch with 12~48VDC Input and Voltage Booster

Overview


LNK-IMC104GP-SFP Industrial PoE+ Switch compact 5-port industrial switch features
4×10/100/1000BASE-T PoE+ ports (802.3at, 30W/port) and 1×100/1000FX SFP slot. With 12-48V DC
wide input (voltage booster supported), -40~75°C operation, and rugged IP40 housing, it's ideal for
harsh environments like solar power systems and industrial networks. CE/FCC certified with 100%
burn-in tested reliability.
Key benefits:
✓ PoE+ power budget optimization
✓ Fiber uplink capability
✓ Industrial-grade durability

Features
100/1000BASE-X SFP slots for SFP type auto detection
12~48VDC wide range power input with power booster function

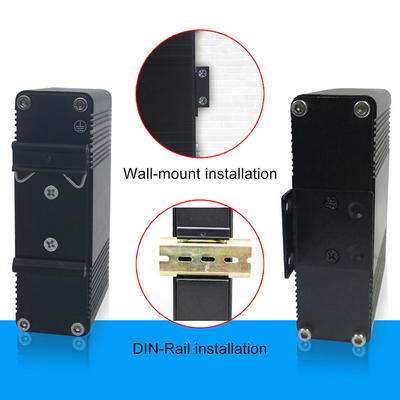

Supports DIN-Rail and Wall-mount installation
Industry standard design, dustproof and close design IP40, rugged high-strength metal case
Application
Mini Industrial Fiber Ethernet Switch 4 Port 10/100/1000T To 1-Port SFP Uplink Gigabit PoE Voltage Booster 0






























Technical Indexes


Ethernet
Standards:IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3at Power over Ethernet Plus PSE
IEEE 802.3af Power over Ethernet Plus
Forward & Filtering Rate:14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer:1Mbits
Packet Length:10Kbytes
MAC Address Table:8K
Switch Fabric:10Gbps/non-blocking
Exchange Property

Backplane bandwidth: 20Gbps;
Packet forwarding rate: 14.88Mpps

Connector:4 ports with 802.3at PoE+ injector function (Ports 1 to 4)
Interface
Connector:4 x RJ45
Optical Port:1 x SFP 1000Base-X or 100Base-FX (auto detection)
PoE (Power over Ethernet)
Standard:IEEE802.3af/at
Port:RJ45
Power Pin Assignment4/5(+), 7/8(-)
PoE Budget:Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
Environmental
Operating Temperature:-40°C to 80°C (-40°F to 176°F)
Storage Temperature:-40°C to 85°C (-40°F to 185°F)
Relative Humidity:5% to 95% non-condensing
MTBF> 200,000 hrs
Electrical and Mechanical
Input Power:12~48VDC (Terminal Block)
Power Consumption:<125W (Non-PoE<6W)
Power Input Overload:Automatic Resettable
Reverse Polarity:Present
Dimensions (WxDxH):95 x 70x 29mm
Weight:0.25Kg
Casing:Aluminum Case
Mounting Options:DIN-Rail / Wall-mount
LED Indicators:
PWR:Power
L/A:Link/Activity
PoE:PoE Status
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55032:2017
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)


























































Ordeing Information

ModelDescription
LNK-IMC104GP-SFPMini Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster
SFP OptionsSFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
SFP module is to be purchased separately.
Mounting OptionsDefault DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power OptionsPower Supply is to be purchased separately
