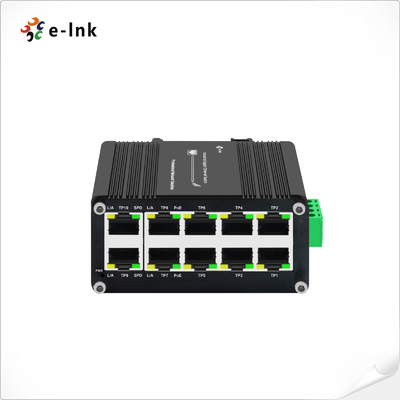

| Product Name: | Industrial 10 Port PoE Switch | Data Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Connector: | 10 10/100/1000BASET RJ45 auto-MDI/MDI-X ports 8 ports with 802.3at PoE+ injector function | Port: | RJ45 |
| Input Power: | 48~57VDC | Dimensions (WxDxH): | 95 x 88 x 46mm |
| Weight: | 400g | Mounting Options: | DIN-Rail mount |
| प्रमुखता देना: | 8-Port 10/100/1000T Compact Ethernet Switch,802.3at PoE Compact Ethernet Switch,Industrial Compact Ethernet Switch |
||
Overview
Features
Up to 8 ports of IEEE 802.3af/at devices powered
48~57V DC redundant power with reverse polarity protection
Supports DIN-Rail installation
10 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
-40°C to 80°C (-40°F to 176°F) operating temperature
Industry standard design, dustproof and close design IP40, rugged high-strength metal case
Application
Technical Indexes
| Ethernet | |
| Standards: | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet | |
| IEEE 802.3ab Gigabit Ethernet | |
| IEEE 802.3x Full-Duplex Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer: | 2Mbits |
| Packet Length: | 9216bytes |
| MAC Address Table: | 4K entries |
| Switch Fabric: | 20Gbps/non-blocking |
| Switch Throughput (packet per second) | 14.88Mpps@64bytes |
| Interface | |
| Connector: | 10 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
| PoE (Power over Ethernet) | |
| Standard: | IEEE 802.3at Power over Ethernet Plus/PSE |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Budget: | Up to 240-watt PoE budget |
| Max. Number of Class 4 PDs | 8 |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 100,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 48~57VDC |
| Power Consumption: | <250W (Non-PoE<10W) |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |

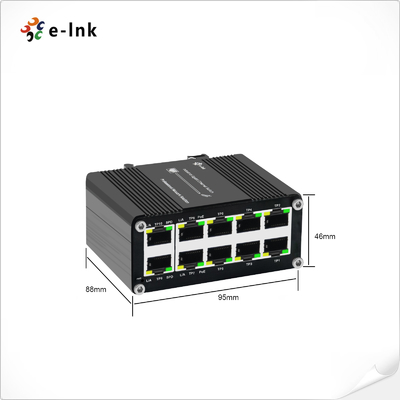

| Dimensions (WxDxH): | 95 x 88 x 46mm |
| Weight: | 400g |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail mount |
| LED Indicators: | |
| PWR | Power |
| L/A | Link/Activity |
| SPD | Data Rate |
| PoE | Max 30W per port |
| Regulatory Approvals | |
| EMC | CE (EN55032, EN55035) |
| EMI | FCC Part 15 Subpart B |
| EMS | EN61000-4-2 (ESD) EN61000-4-3 (RS) |
| EN61000-4-4 (EFT) EN61000-4-5 (Surge) | |
| EN61000-4-6 (CS) EN61000-4-8 (PFMF) EN61000-4-11 | |
| Safety | CE (EN60950-1) |
| Surge Protection | 8KV for PoE, RJ-45 and SFP ports |
| Shock | IEC60068-2-27 |
| Freefall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
Ordering Information
| Model | Description |
| LNK-IMC010GP | Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed. |
| Power Options | ► Power Supply is to be purchased separately |
