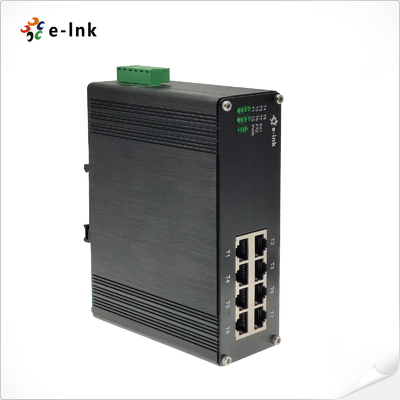

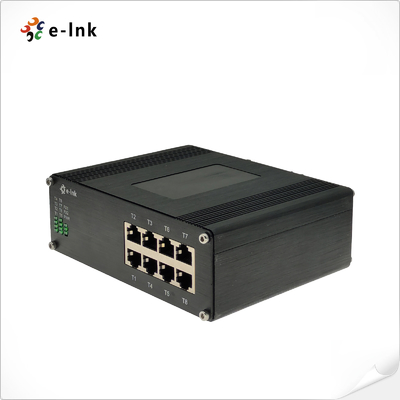

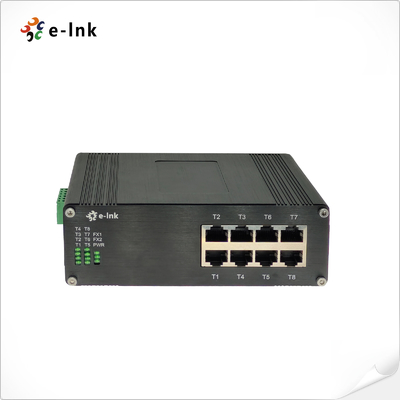

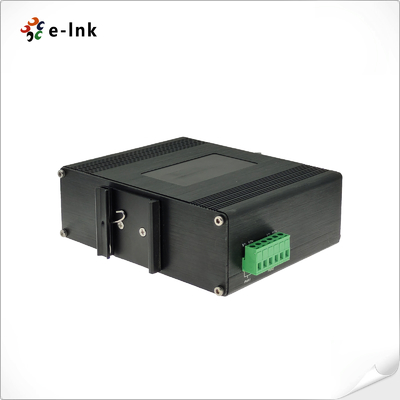

8-Port 10/100Base-TX Redundant 12～58VDC Power Inputs Hardened Unmanaged Industrial Ethernet Switch

बड़ी छवि : 8-Port 10/100Base-TX Redundant 12～58VDC Power Inputs Hardened Unmanaged Industrial Ethernet Switch

उत्पाद विवरण:

Place of Origin:	China
ब्रांड नाम:	E-link
प्रमाणन:	ISO9001, CE, RoHS, FCC
मॉडल संख्या:	एलएनके-आईएमसी008

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1 टुकड़ा
मूल्य:	negotiable
Packaging Details:	Unmanaged Industrial Ethernet Switch Standard Export Package
Delivery Time:	3~10 working days
भुगतान शर्तें:	पेपैल, टीटी, वेस्टर्न यूनियन, मनीग्राम, अलीपे
Supply Ability:	2000pcs per month

संपर्क करें

विस्तृत उत्पाद विवरण

अधिकतम दूरी:	Cat5 UTP 100m तक	कनेक्टर:	8 एक्स आरजे 45
परिचालन तापमान:	-40 ° C से 80 ° C (-40 ° F से 176 ° F)	Input Power:	12~58VDC, Redundant Power (6-pin Terminal Block)
Dimensions (WxDxH):	150 x 115 x 50 mm	वज़न:	0.6 किग्रा
झलार:	एल्यूमीनियम केस	Mounting Options:	DIN-Rail / Wall-mount
प्रमुखता देना:	8-Port Unmanaged Ethernet Switch , 58VDC Power Inputs Industrial Ethernet Switch , 10/100Base-TX Industrial Ethernet Switch

Unmanaged Industrial 8-port 10/100BASE-T Ethernet Switch

Overview

The LNK-IMC008 is an 8-port hardened industrial Ethernet switch designed for reliable networking in

harsh environments. This unmanaged switch features 8×10/100Base-TX auto-negotiation ports with

auto MDI/MDI-X support, providing plug-and-play connectivity for industrial devices.

Key Features:
✔Industrial-grade durability: Operates in wide temperature ranges and resists vibration/shock
✔100% burn-in tested for maximum reliability in critical applications
✔Compliant with CE/FCC standards for electromagnetic compatibility
✔Fanless metal housing for silent operation and enhanced heat dissipation

Ideal for:
• Factory automation systems
• Machine vision networks
• Transportation infrastructure
• Other industrial applications requiring rugged Ethernet connectivity

With its no-configuration design and proven industrial reliability, the LNK-IMC008 delivers a cost-effective

networking solution that withstands challenging environmental conditions while maintaining stable data

transmission.

Features

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail and Wall-mount installation

► Redundant 12～58VDC Power Inputs

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature

► 8 10/100Base-TX ports

► RJ45 Port Supports 10/100Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Supports 802.3x Flow control

Application

8-Port 10/100Base-TX Redundant 12～58VDC Power Inputs Hardened Unmanaged Industrial Ethernet Switch 0

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3x Flow Control
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
Cabling	10Base-T: Cat5 or above
	100Base-TX: Cat5 or above
Maximum Distance	Cat5 UTP up to 100m
Interface
Connector:	8 x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~58VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	5W Max.
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power1, Power2 Status
Ethernet (Per Port):	Link/Activity
Dimensions (WxDxH):	150 x 115 x 50 mm
Weight:	0.6Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC008	Industrial 8-port 10/100BASE-T Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
