Micro Managed Industrial Network Switch with 8 Ports 10/100/1000Base-TX + 2 Port 100/1000Base-X SFP

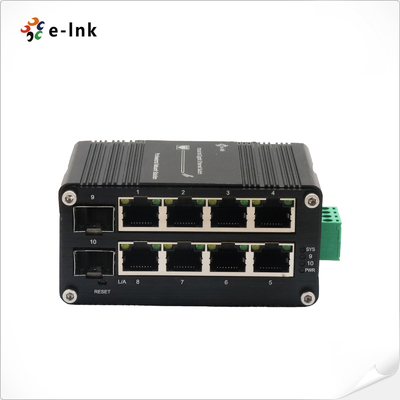

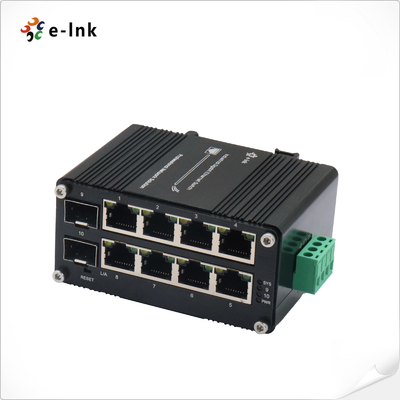

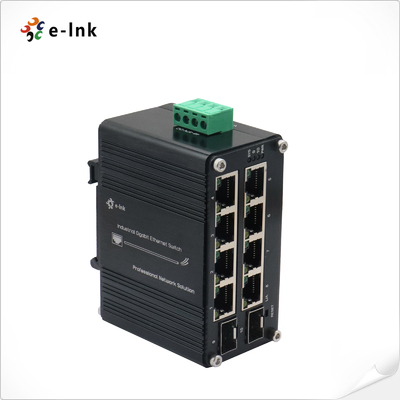

बड़ी छवि : Micro Managed Industrial Network Switch with 8 Ports 10/100/1000Base-TX + 2 Port 100/1000Base-X SFP

उत्पाद विवरण:

उत्पत्ति के प्लेस:	चीन
ब्रांड नाम:	E-link
प्रमाणन:	ISO9001, CE, RoHS, FCC
मॉडल संख्या:	एलएनके-आईएमसी208एसजी-एसएफपी

भुगतान & नौवहन नियमों:

Minimum Order Quantity:	1PCS
मूल्य:	negotiable
Packaging Details:	Ethernet Switch Standard Export Package
प्रसव के समय:	3 ~ 5 कार्य दिवस
Payment Terms:	Paypal, TT, Western Union, MoneyGram, Alipay
आपूर्ति की क्षमता:	प्रति माह 5000 पीसी

संपर्क करें

विस्तृत उत्पाद विवरण

Connector:	8 x RJ45	ऑप्टिकल बंदरगाह:	2 x 100/1000बेस-एक्स एसएफपी
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)	इनपुट शक्ति:	12~48VDC, निरर्थक शक्ति (4-पिन टर्मिनल ब्लॉक)
(Wxdxh):	95 x 63 x 46 मिमी	Weight:	300g
प्रमुखता देना:	Micro Managed Industrial Switch , Industrial Network Switch , Managed Industrial Network Switch

Mini Industrial Managed 8-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch

Overview
The LNK-IMC208SG-SFP is a managed industrial network switch designed for reliable and flexible
connectivity in challenging environments. It features 8 10/100/1000Base-TX RJ45 ports for standard
Ethernet connectivity and 2 SFP ports supporting 100/1000Base-X fiber, compatible with both
single-mode and multi-mode fibers (1 or 2 core). This configuration enables seamless integration of
devices like IP cameras and wireless access points across remote locations, combining high-speed
copper connections with long-distance fiber links. Its managed capabilities offer advanced network
control and monitoring, ensuring stable performance and simplified deployment. The switch’s robust
design and user-friendly interface make it an ideal solution for industrial networks requiring scalable,
secure, and efficient connectivity between distributed devices.
Features

► Supports WEB Management

► Supports 802.3x Flow Control

► Support IEEE802.3/802.3u/802.3ab/802.3z/802.3x store and forward mode

► Support IEEE 802.3D/W/S standard STP/RSTP protocol

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Redundant Power Inputs

► Supports DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature.

► 8x10/100/1000Base-TX + 2x100/1000Base-X SFP

► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

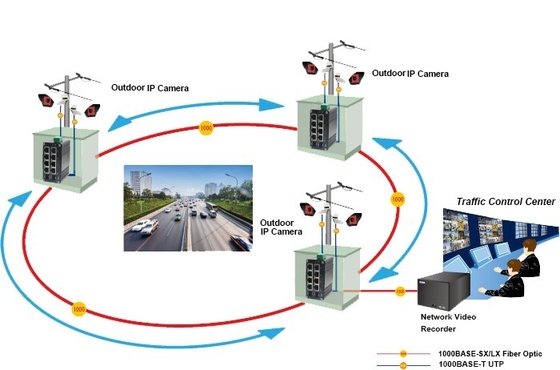

Application
Micro Managed Industrial Network Switch with 8 Ports 10/100/1000Base-TX + 2 Port 100/1000Base-X SFP 0

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Backplane bandwidth	20Gbps
Packet Buffer Memory:	9216 bits
Processing Type:	Store-and-Forward
Max Packet Length:	9K Bytes Jumbo Frame
Address Table Size:	4K MAC Addresses
Interface
Connector:	8 x RJ45
Optical Port:	2 x 100/1000Base-X SFP
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC, Redundant Power (4-pin Terminal Block)
Power Consumption:	5W Max.
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
PWR:	Power Status
Ethernet (Per Port):	Link/Activity
Fiber:	Gigabit SFP Port: F9~F10
Dimensions (WxDxH):	95 x 63 x 46 mm
Weight:	300g
Casing:	Aluminum Case
Mounting Options:	DIN-Rail mount
Software Features
Redundancy Protocols	Support STP/RSTP
Multicast Support	Support IGMP Snooping V1/V2/V3
VLAN	Support IEEE 802.1Q 4K VLAN
QOS	Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA, Port Priority, Queue Weight
Diagnostic Maintenance	Support port mirroring, Syslog, Ping
Management Function	WEB
Security	Broadcast/Multicast Storm Protection, MAC filtering, MAC Constraint
Regulatory Approvals
ISO9001, CE, RoHS, FCC
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC208SG-SFP	Mini Industrial Managed 8-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
