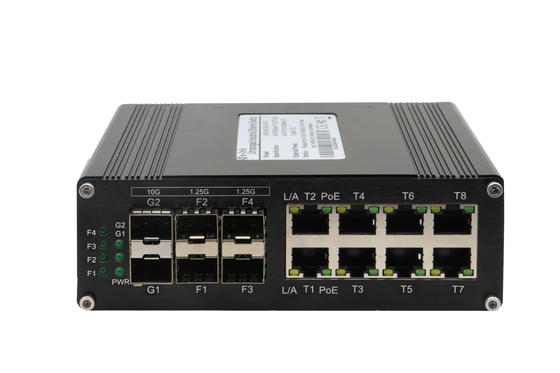

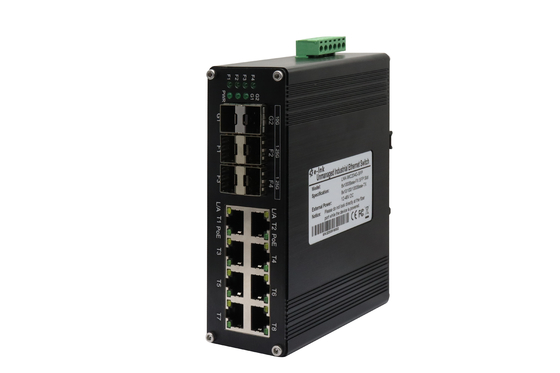

Industrial 8-port 10/100/1000Base-T + 4-port 1000Base-X SFP + 2-port 10G Base-SR/LR SFP+ Hardened Ethernet Switch

बड़ी छवि : Industrial 8-port 10/100/1000Base-T + 4-port 1000Base-X SFP + 2-port 10G Base-SR/LR SFP+ Hardened Ethernet Switch

उत्पाद विवरण:

Place of Origin:	China
ब्रांड नाम:	E-link
प्रमाणन:	CE, RoHS, FCC, ISO9001
मॉडल संख्या:	एलएनके-आईएमसी2X4S8G

भुगतान & नौवहन नियमों:

Minimum Order Quantity:	1 pcs
मूल्य:	To be negotiated
पैकेजिंग विवरण:	फाइबर ऑप्टिक स्विच मानक निर्यात पैकेज
प्रसव के समय:	5-12working दिन
भुगतान शर्तें:	एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम, पेपैल, क्रेडिट कार्ड
Supply Ability:	1000pcs/month

संपर्क करें

विस्तृत उत्पाद विवरण

Connector:	8 x RJ45	Optical Port:	4 x 1000Base-X SFP 2 x 10G Base-SR/LR SFP+
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)	इनपुट शक्ति:	12 ~ 48VDC, निरर्थक शक्ति (6-पिन टर्मिनल ब्लॉक)
Dimensions (WxDxH):	149 x 114 x 50 mm	Weight:	0.55Kg
प्रमुखता देना:	4-port 1000Base-X Hardened Ethernet Switch , 8-port 10/100/1000Base-T Hardened Ethernet Switch

Industrial 8-Port 10/100/1000T + 4-Port 1G SFP + 2-Port 10G SFP+ Ethernet Switch

Overview
The LNK-IMC2X4S8G Series is a hardened industrial Ethernet switch engineered for robust and flexible
network connectivity in challenging environments. It features a versatile port configuration, combining 8
10/100/1000Base-T RJ45 ports for standard Ethernet devices with 4 1000Base-X SFP ports and 2 10G
Base-SR/LR SFP+ ports to support high-speed fiber connections. The switch offers 8 TP (RJ45) ports
with auto MDI/MDI-X and Full/Half duplex mode, alongside 6 fiber ports (4 SFP + 2 SFP+) capable of
single-mode or multi-mode fiber deployment (1 or 2 core). This design enables seamless integration of
devices like IP cameras and wireless access points across remote locations, leveraging gigabit and 10G
fiber links for extended reach and bandwidth. Its hardened construction and managed capabilities ensure
reliable performance and easy deployment in industrial networks, making it an ideal choice for scalable,
secure connectivity between distributed devices.
Features

► Supports 802.3x Flow control

► 9K Bytes Jumbo Frame

► Redundant Power Inputs

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40 Aluminum Case

► Supports DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature

► 8x10/100/1000Base-T + 4x1000Base-X SFP + 2x 10GBase-SR/LR SFP+

► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

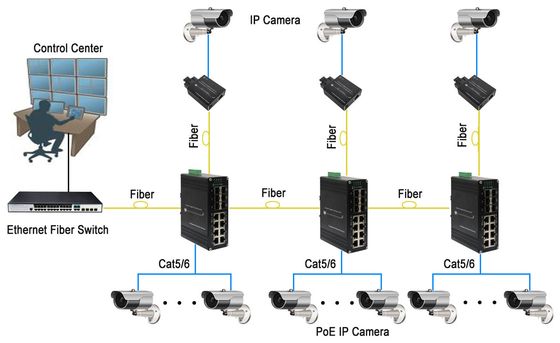

Application
Industrial 8-port 10/100/1000Base-T + 4-port 1000Base-X SFP + 2-port 10G Base-SR/LR SFP+ Hardened Ethernet Switch 0

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE802.3ae 10GBase-R
	IEEE802.3p QoS
	IEEE802.1d Spanning Tree
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
	1,488,000,000pps (10000Mbps)
Packet Buffer Memory:	2.75M bits
Processing Type:	Store-and-Forward
Max Packet Length:	9K Bytes Jumbo Frame
Address Table Size:	8K MAC Addresses
Interface
Connector:	8 x RJ45
Optical Port:	4 x 1000Base-X SFP 2 x 10G Base-SR/LR SFP+
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	8W Max.
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power Status
Ethernet (Per Port):	Link/Activity
Fiber:	Gigabit SFP Port: F1~F4
Fiber:	10G SFP+ Port: G1, G2
Dimensions (WxDxH):	149 x 114 x 50 mm
Weight:	0.55Kg
Casing:	Aluminum Case

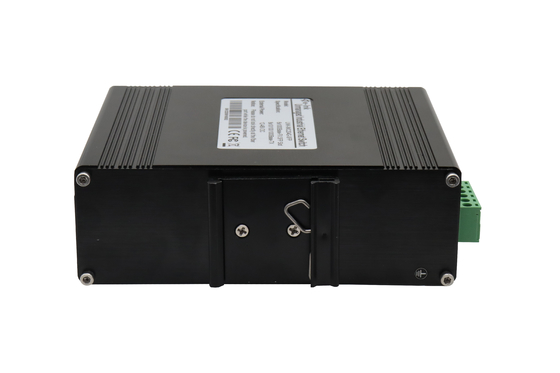

Mounting Options:	DIN-Rail mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC2X4S8G	Industrial 8-Port 10/100/1000T + 4-Port 1G SFP + 2-Port 10G SFP+ Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed
Power Options	► DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
