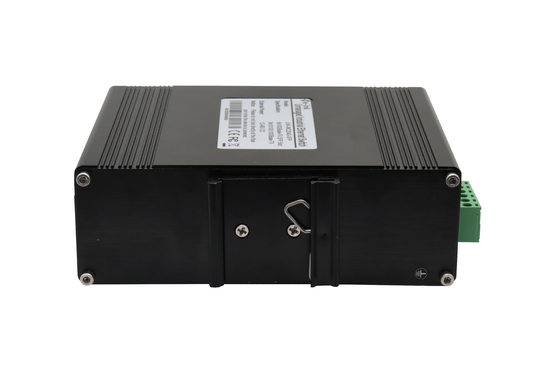

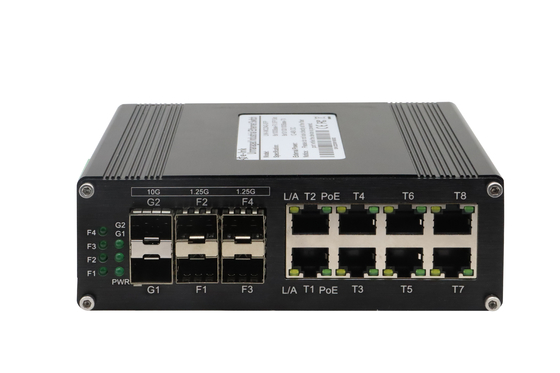

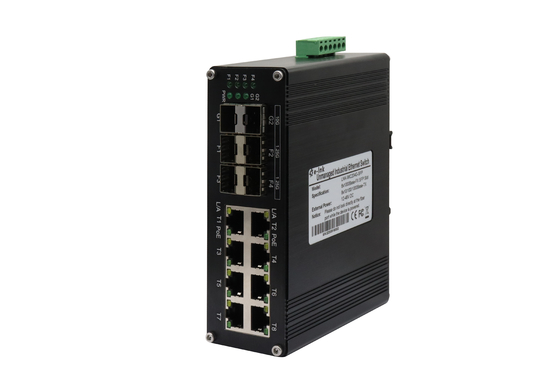

Industrial 8-Port 10/100/1000Base-T + 6-Port 1000Base-X SFP Hardened Ethernet Switch

बड़ी छवि : Industrial 8-Port 10/100/1000Base-T + 6-Port 1000Base-X SFP Hardened Ethernet Switch

उत्पाद विवरण:

उत्पत्ति के प्लेस:	चीन
ब्रांड नाम:	E-link
प्रमाणन:	ISO9001, CE, RoHS, FCC
मॉडल संख्या:	एलएनके-आईएमसी608जीपी-एसएफपी

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1 पीसी
मूल्य:	negotiable
पैकेजिंग विवरण:	एसएफपी ईथरनेट स्विच मानक निर्यात पैकेज
Delivery Time:	2~7 working days
भुगतान शर्तें:	पेपैल, टीटी, वेस्टर्न यूनियन, मनीग्राम, अलीपे
Supply Ability:	5000pcs per month

संपर्क करें

विस्तृत उत्पाद विवरण

कनेक्टर:	8 एक्स आरजे 45	Optical Port:	6 x 1000Base-X SFP
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)	(Wxdxh):	149 x 114 x 50 मिमी
Weight:	0.55Kg	झलार:	एल्यूमीनियम केस
प्रमुखता देना:	Industrial 6-Port Ethernet Switch , Industrial 8-Port Ethernet Switch , Industrial Hardened Ethernet Switch

Industrial 8-Port 10/100/1000T + 6-Port 1000X SFP Ethernet Switch

Overview

The LNK-IMC608G-SFP Series is a hardened industrial Ethernet switch engineered for reliable and

flexible network connectivity in challenging environments. It features 8 10/100/1000Base-T RJ45

ports for standard Ethernet devices and 6 1000Base-X SFP ports for fiber connections, enabling a

mix of copper and fiber deployments. The switch offers 8 TP (RJ45) ports with auto MDI/MDI-X and

Full/Half duplex mode, alongside 6 fiber ports (1000Base-X) capable of single-mode or multi-mode

fiber deployment (1 or 2 core). This design allows seamless integration of devices like IP cameras

and wireless access points across remote locations, leveraging gigabit speeds and long-distance fiber

links. Its hardened construction and managed capabilities ensure stable performance and easy

deployment, making it an ideal choice for industrial networks requiring scalable, secure connectivity

between distributed devices.

Features

► Supports 802.3x Flow control

► 9K Bytes Jumbo Frame

► Redundant Power Inputs

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40 Aluminum Case

► Supports DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature

► 8x10/100/1000Base-T + 6x1000Base-X SFP

► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

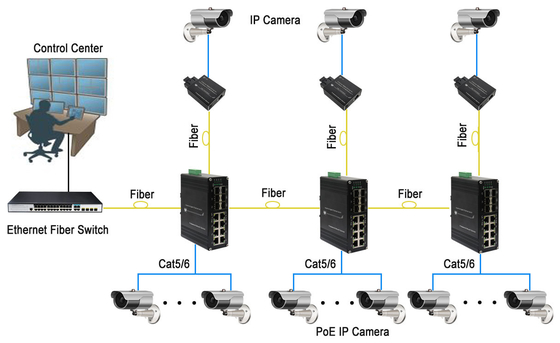

Application

Industrial 8-Port 10/100/1000Base-T + 6-Port 1000Base-X SFP Hardened Ethernet Switch 0

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE802.3p QoS
	IEEE802.1d Spanning Tree
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	2.75M bits
Processing Type:	Store-and-Forward
Max Packet Length:	9K Bytes Jumbo Frame
Address Table Size:	8K MAC Addresses
Interface
Connector:	8 x RJ45
Optical Port:	6 x 1000Base-X SFP
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	8W Max.
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power Status
Ethernet (Per Port):	Link/Activity
Fiber:	Gigabit SFP Port: F1~F6
Dimensions (WxDxH):	149 x 114 x 50 mm
Weight:	0.55Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC608G-SFP	Industrial 8-Port 10/100/1000T + 6-Port 1000X SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed
Power Options	► DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
