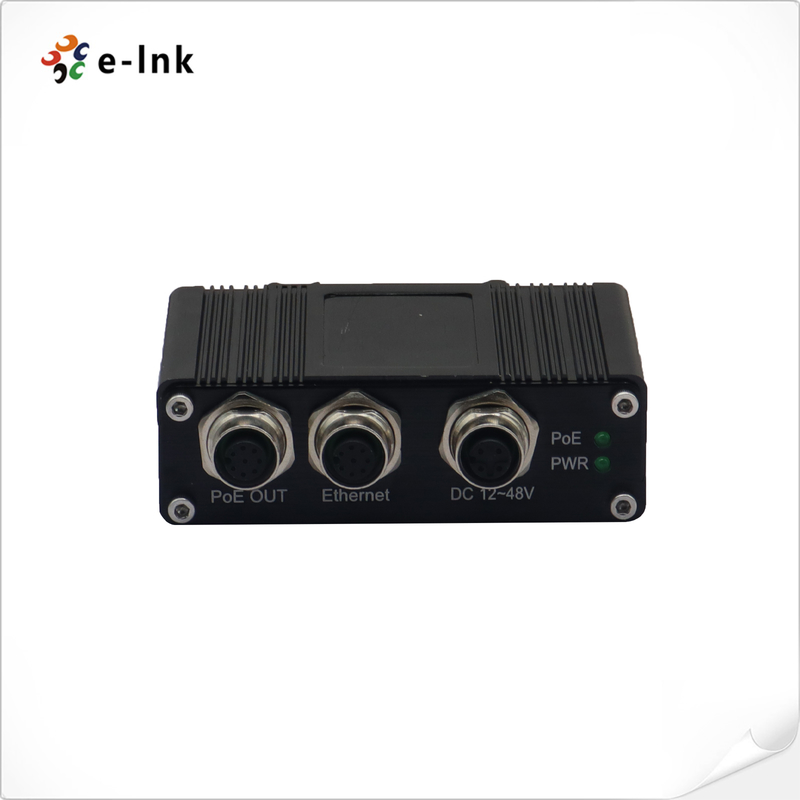

E-Link EN50155 Compliant M12 PoE Injector for Industrial & Vehicle Applications

बड़ी छवि : E-Link EN50155 Compliant M12 PoE Injector for Industrial & Vehicle Applications

उत्पाद विवरण:

उत्पत्ति के प्लेस:	ग्वांगडोंग, चीन
ब्रांड नाम:	E-link
प्रमाणन:	CE, FCC, RoHS, ISO9001
मॉडल संख्या:	LNK-INJ301-30-M12
दस्तावेज:	E-link LNK-INJ301-M12 Indus....0.pdf

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1 टुकड़ा
मूल्य:	$89-$109
पैकेजिंग विवरण:	औद्योगिक पो इंजेक्टर मानक निर्यात पैकेज
प्रसव के समय:	3-10 कार्य दिवस
भुगतान शर्तें:	टी/टी, वेस्टर्न यूनियन, मनीग्राम
आपूर्ति की क्षमता:	10000 प्रति माह

संपर्क करें

विस्तृत उत्पाद विवरण

Input Power:	12-48V DC via 5-pin female M12 A-coding connector	पीओई अनुपालन:	IEEE802.3AF/ईथरनेट पर शक्ति के लिए मानकों का समर्थन करता है
अधिकतम शक्ति प्रति बंदरगाह:	30W प्रति बंदरगाह तक	परिचालन तापमान:	-40 ° C से 80 ° C (-40 ° F से 176 ° F)
DIMENSIONS:	95 x 70 x 30 मिमी का कॉम्पैक्ट आकार	Mounting Options:	Supports both DIN-rail and wall-mount installations
प्रमुखता देना:	Vehicle Application M12 PoE Injector , Industrial M12 PoE Injector , E-Link EN50155 M12 PoE Injector

E-Link EN50155 Compliant M12 PoE Injector

Overview

The E-Link EN50155 compliant PoE Injector is engineered for demanding industrial

applications, including rolling stock, vehicles, and railway systems. This advanced

IEEE802.3at PoE device features Intelligent Detection, offering a single 10/100/1000

Base-T(X) PoE output port that meets EN50155 standards. Designed to withstand harsh

environments, the PoE injector utilizes M12 connectors for secure, durable connections,

ensuring reliable operation even in conditions with vibration and shock. It only powers on

when a valid PoE signature is detected from downstream devices, protecting non-PoE

devices from potential damage. The LNK-INJ301-M12 provides an integrated power solution

with a wide voltage input range of 12-48VDC, ideal for high-availability applications.

Features

12~48VDC power supply input

Fully compliant with IEEE802.3af/at standards

Supports 10/100/1000Base-TX for both data and power transmission

Compatible with DIN rail and wall-mount installation options

M12 connectors ensure secure and durable connections

Comprehensive LED indicators for PoE status monitoring

Designed for extreme conditions with an operating temperature range of -40°C to 80°C

(-40°F to 176°F)

Technical Indexes

Ethernet
Standards:	IEEE802.3af Power over Ethernet
Standards:	IEEE802.3at Power over Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	10/100/1000Base-T
Connector:	2x M12 connector (8-pin female M12 A-coding)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48VDC on 5-pin female M12 A-Coding
Power Consumption:	36W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	M12 connector (8-pin female M12 A-coding)
Max. Power per Port:	30W Max
LED Indicators:
Power:	Power Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A, EN50155
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

Ordering Information

Model	Description
LNK-INJ301-M12	EN50155 Industrial 1-port 10/100/1000M M12 PoE Injector 12~48VDC Power Input
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately

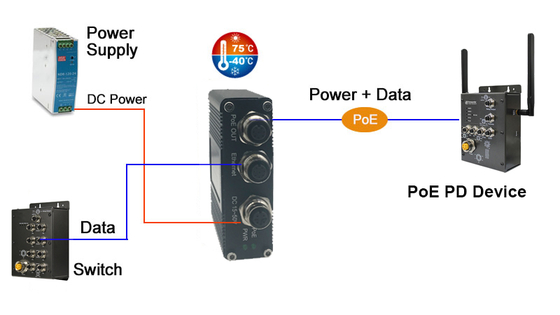

Application

M12 Pin Assignments:

Pin		Assignment
RJ45	M12	PoE	Ethernet
1	6	TP0+	TP0+
2	4	TP0-	TP0-
3	5	TP1+	TP1+
4	7	TP2+(VCC+)	TP2+
5	1	TP2-(VCC+)	TP2-
6	8	TP1-	TP1-
7	2	TP3+(VCC-)	TP3+
8	3	TP3-(VCC-)	TP3-
