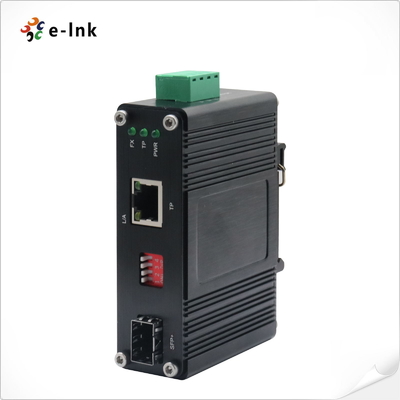

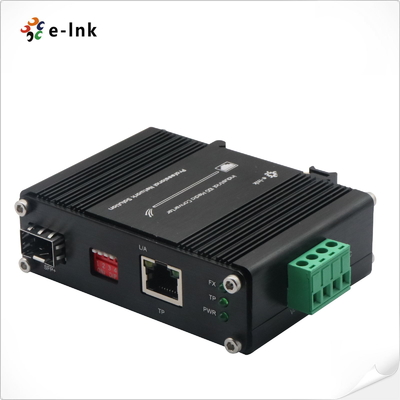

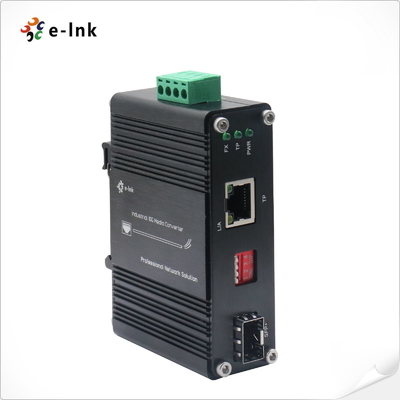

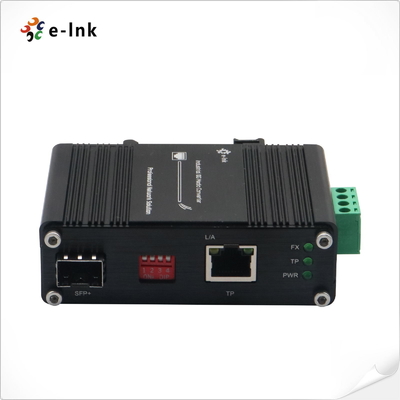

Compact Size Industrial 10G Media Converter SFP+ RJ45 Port Wide Temperature

बड़ी छवि : Compact Size Industrial 10G Media Converter SFP+ RJ45 Port Wide Temperature

उत्पाद विवरण:

उत्पत्ति के प्लेस:	चीन
ब्रांड नाम:	E-link
प्रमाणन:	ISO9001, CE, RoHS, FCC
मॉडल संख्या:	एलएनके-आईएमसी10जी-एसएफपी+
दस्तावेज:	E-link LNK-IMC10G-SFP Indus....0.doc

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1 टुकड़ा
मूल्य:	USD $89-99
पैकेजिंग विवरण:	औद्योगिक मीडिया कनवर्टर मानक निर्यात पैकेज
प्रसव के समय:	2~7 कार्य दिवस
Payment Terms:	Paypal,TT,Western Union,MoneyGram,Alipay,T/T,D/P,D/A,L/C
आपूर्ति की क्षमता:	2000pcs प्रति माह

संपर्क करें

विस्तृत उत्पाद विवरण

प्रोडक्ट का नाम:	औद्योगिक ईथरनेट मीडिया कनवर्टर	Input Power:	12~48VDC, Redundant Power (4-pin Terminal Block)
बिजली की खपत:	5W मैक्स	वज़न:	0.25 किग्रा
DIMENSIONS:	95 x 70 x 30 मिमी	बढ़ते विकल्प:	डीआईएन-रेल/वॉल-माउंट
प्रमुखता देना:	Industrial 10G Media Converter , Compact Size Industrial 10G Media Converter , SFP+ RJ45 Port Media Converter

Mini Industrial 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter

Mini Industrial Media Converter Overview

The LNK-IMC10G-SFP+ Media Converter is an ultra-compact, industrial-grade 10G Ethernet optical fibre converter.

It supports 100M/1G/2.5G/5G/10G RJ45 copper cables and 10G SFP+ fibre interfaces. The product has been designed

for long-distance 10G Ethernet copper-to-fibre transmission in harsh environments. It features IP40 protection

and a redundant power supply. This product is capable of operating in a wide temperature range

of -40°C to +80°C, making it ideal for applications requiring high bandwidth and reliability,

including industrial automation, intelligent transportation, and data centres.

Mini Industrial Media Converter Features

LNK-IMC10G-SFP+ Media Converter presents the following characteristics:

Flexible Interface Options : 1× RJ45 port supporting 100M/1G/2.5G/5G/10G BASE-T
with auto MDI/MDI-X and 1× 10GBASE-X SFP+ slot
Full Ethernet Standard Compliance : Meets IEEE 802.3u/802.3ab/802.3bz/802.3ae standards
Auto-Negotiation Support : 100Mbps & 1Gbps half/full duplex, 2.5G/5G/10G full duplex modes
Energy Efficient Design : Compliant with IEEE 802.3az for reduced power consumption
Clear Status Monitoring : LED indicators for power, link, and activity diagnostics
Wide Power Input Range : 12~48VDC via terminal block for flexible industrial power systems
Versatile Mounting : Supports DIN-Rail and Wall-mount installations
Rugged & Reliable : Operates in harsh environments with -40°C to +75°C (-40°F to 167°F) temperature range

Mini Industrial Media Converter Technical Indexes

Ethernet
Standards:	IEEE 802.3u 100BASE-TX
	IEEE 802.3ab 1000BASE-T
	IEEE 802.3bz 2.5G/5GBASE-T
	IEEE 802.3an 10GBASE-T
	IEEE 802.3ae 10Gbps Ethernet
	IEEE 802.3x full-duplex flow control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate:	100Mbps
	1000Mbps
	2.5Gbps
	5Gbps
	10Gbps
Network Cables:	10G/5G/2.5G/1G/100M BASE-T: 　10G – Cat 6A/7 　5G – Cat 6/6A/7 　1G/2.5G – Cat 5e/6/6A/7 100M – Cat 5/5e/6/6A/7 　Cat 5/5e/6/6A/7 UTP cable (100 meters, max.) 　EIA/TIA-568 100-ohm STP (100 meters, max.) 10GBASE-LR/SR/BX: 　50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m 　9/125μm single-mode fiber optic cable, up to 80km
Processing Type:	Store-and-Forward
Fabric:	20Gbps
Jumbo Frame:	16K
Address Table:	9K entries, automatic source address learning and aging
Interface
Connector:	1 x RJ45
Optical Port:	1 x SFP+
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC, Redundant Power (4-pin Terminal Block)
Power Consumption:	5W Max
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
DIP Switch
4-digit DIP switch function	DIP	Function	Settings
	SW 1	Reserved	ON - Reserved	OFF - Reserved
	SW 2	Reserved	ON - Reserved	OFF - Reserved
	SW 3	Reserved	ON - Reserved	OFF - Reserved
	SW 4	Reserved	ON - Reserved	OFF - Reserved
Note: DIP Switch’s function can be customized based on client’s requirements.
LED Indicators:
PWR:	Power Status
L/A:	Link/Activity at Ethernet Port
TP:	Ethernet Status
FX:	SFP+ Fiber Port Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail/Wall-mount
Regulatory Approvals
ISO9001, CE, RoHS, FCC
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Mini Industrial Media Converter Ordering Information

Model	Description
LNK-IMC10G-SFP+	Mini Industrial 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter
SFP Options	► SFP+ option. Please select your SFP+ on our SFP+ Options Page (Industrial SFP).
SFP Options	► SFP+ module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
	► Power Supply is to be purchased separately.
