उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| अधिकतम दूरी: | कैट 5 यूटीपी का उपयोग करके 100 मीटर तक | इनपुट शक्ति: | टर्मिनल ब्लॉक के माध्यम से 12-48V डीसी |
|---|---|---|---|
| पीओई आउटपुट: | IEEE 802.3BT, 802.3AT, और 802.3AF POE मानकों का समर्थन करता है, 48VDC पर 95W POE तक के साथ | Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| वृद्धि संरक्षण: | RJ45 के लिए 1KV सुरक्षा, बिजली इनपुट के लिए 500V, 4kv/8kv ESD सुरक्षा | बढ़ते विकल्प: | डिनर-रेल और दीवार-माउंट दोनों प्रतिष्ठानों के लिए उपयुक्त |
| प्रमुखता देना: | Industrial Gigabit PoE Injector 95W,IEEE 802.3bt 95W PoE Injector,PoE Injector with Voltage Booster |
||

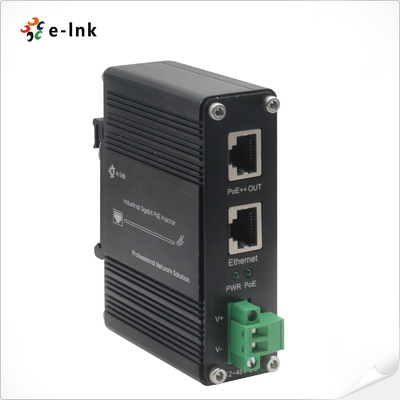

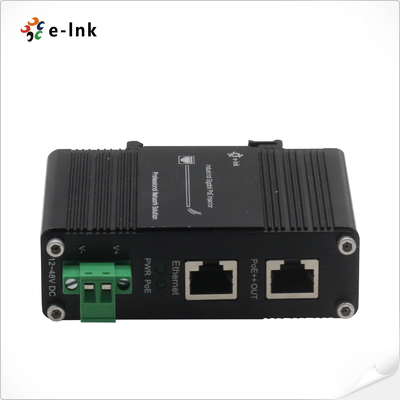

Industrial Gigabit PoE+ Injector IEEE 802.3bt 95W with Voltage Booster
Overview
The LNK-INJ-48-95W is an industrial-grade, single-port Gigabit PoE+ injector designed to
deliver up to 95W of power using IEEE 802.3bt / LTPoE++ standards. With a wide 12-48V
DC input and built-in voltage booster, it allows for seamless connection of PoE devices
such as cameras and access points to a non-PoE LAN switch within a 100-meter range.
Both the Ethernet port (for switch connection) and the PoE output port (for powering
devices) support 10/100/1000Base-T and comply with IEEE 802.3ab standards, ensuring
high-speed, reliable data and power transmission. This ruggedized injector is ideal for
industrial applications, providing robust performance even in demanding environments.
Features
1 RJ45 Ethernet data input port + 1 RJ45 PoE output port (Data + Power)
Supports 95W LTPoE++ Power Sourcing Equipment
Fully compliant with IEEE 802.3at/bt PoE end-span/mid-span PSE
Compatible with 10/100/1000Base-TX Ethernet speeds
Includes multiple LED indicators for PoE status monitoring
12-48V DC wide input range with built-in power booster function
Delivers up to 95W PoE output at 48VDC, 95W at 24VDC, and 60W at 12VDC
Supports both DIN rail and wall-mount installation options
Built for extreme conditions with an operating temperature range of -40°C to 80°C
Technical Indexes
|
Standards: |
IEEE802.3 10 BASE-T Ethernet IEEE802.3u 100 BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE802.3 x Flow Control |
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A 1000BASE-T: 4-pair UTP Cat. 5e, 6, 6A |
|
Maximum Distance: |
Cat5 UTP up to 100m |
|
Connector: |
2x RJ45 |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC (Terminal Block) |
|
Power Consumption: |
100W Max. |
|
Power over Ethernet: |
|
|
Standard: |
IEEE 802.3bt 4-pair Power over Ethernet |
|
IEEE 802.3at Power over Ethernet Plus |
|
|
IEEE 802.3af Power over Ethernet |
|
|
Port: |
RJ45 |
|
Power Pin Assignment |
Data provide over pairs 1,2TX and 3,6RX Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-) |
|
PoE Budget: |
Up to 95-watt PoE budget (48VDC) Up to 95-watt PoE budget (24VDC) Up to 60-watt PoE budget (12VDC) |
|
LED Indicators: |
|
|
Power: |
Power Status |
|
PoE: |
PoE Status |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
IP40 Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Standard Accessories |
|
|
Package Contents |
LNK-INJ-48-95W |
|
User's manual |
|
|
Wall-mount kit |
|
|
DIN-mount kit |
|
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500V |
|
|
ESD: 4KV/8KV |
|
Ordering Information
|
Model |
Description |
|
LNK-INJ-48-95W |
Hardened Gigabit 1-port Ethernet Input + 1-port 95W PoE++ Output Injector with 12~48V DC wide range power input |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block |
|
|
► Power Supply is to be purchased separately. |
Application
