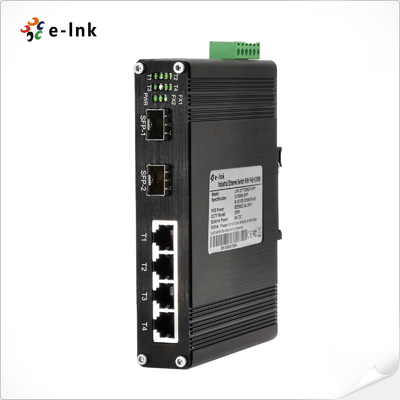

Hardened 4-Port Gigabit 802.3bt PoE++ + 2-Port Fiber Industrial Switch

बड़ी छवि : Hardened 4-Port Gigabit 802.3bt PoE++ + 2-Port Fiber Industrial Switch

उत्पाद विवरण:

उत्पत्ति के प्लेस:	ग्वांगडोंग, चीन
ब्रांड नाम:	E-link
प्रमाणन:	CE, RoHS, FCC, ISO9001
मॉडल संख्या:	LNK-IMC204GP60
दस्तावेज:	E-link LNK-IMC204GP60 Serie....1.pdf

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1 टुकड़ा
मूल्य:	$100-$139
पैकेजिंग विवरण:	औद्योगिक ईथरनेट POE स्विच मानक निर्यात पैकेज
प्रसव के समय:	5-12working दिन
भुगतान शर्तें:	टी/टी, वेस्टर्न यूनियन, मनीग्राम, पेपैल, क्रेडिट कार्ड
आपूर्ति की क्षमता:	1000pcs/महीना

संपर्क करें

विस्तृत उत्पाद विवरण

ईथरनेट पोर्ट:	4 × 10/100/1000BASE-T RJ45	फाइबर बंदरगाह:	2 × 100/1000Base-X (SFP/SC/FC/ST वैकल्पिक)
पोई स्टैंडर्ड:	IEEE802.3AF/AT/BT (60W अधिकतम प्रति पोर्ट)	बिजली इनपुट:	48 ~ 57VDC, निरर्थक (6-पिन टर्मिनल ब्लॉक)
संचालन तापमान:	-40 डिग्री सेल्सियस ~ + 80 डिग्री सेल्सियस	DIMENSIONS:	150 × 115 × 30 मिमी; वजन: 0.5 किग्रा
प्रमुखता देना:	4-port Gigabit PoE++ industrial switch , 802.3bt PoE fiber switch , industrial Ethernet switch with fiber ports

Hardened 4-Port Gigabit 802.3bt PoE++ + 2-Port Fiber Industrial Switch

Overview

The LNK-IMC204GP60 Series is a rugged industrial PoE++ switch designed for harsh

environments. Featuring 4 Gigabit RJ45 ports with up to 60W PoE per port and 2 dual-speed

fiber uplinks, it delivers both power and high-speed data to IP cameras, wireless APs, and

other demanding devices. With wide temperature tolerance, redundant power inputs, and

flexible mounting, it ensures reliable and efficient networking for industrial and remote

deployments.

Features

High Power PoE++ – Up to 60W per port, ideal for PTZ cameras & APs

Dual Fiber Uplinks – 100/1000Base-X with SFP/SC/FC/ST options

Rugged Design – Operates from -40°C to 80°C in harsh conditions

Redundant Power – 48~57VDC inputs with overload & polarity protection

Energy Efficient – IEEE 802.3az support for optimized power usage

Flexible Mounting – Compact aluminum case for DIN-Rail or wall installation

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	1M bits
Processing Type:	Store-and-Forward
Max Packet Length:	9K Bytes
Address Table Size:	2048 MAC Addresses
Interface
Connector:	4 x RJ45
Optical Port:	2 x 100/1000Base-FX (SFP, SC, FC, ST Optional)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	240W Max. (PoE in use)
Power Consumption:	5W Max. (PoE not in use)
Standard:	IEEE802.3af/at/bt
PoE:
Port:	RJ45 Port 1 ~ Port 4
Max. Power per Port:	60W Max per port
Power Pin Assignment	1/2(+), 3/6(-) or 4/5(+), 7/8(-)
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power1, Power2 Status
PoE:	Per Port Status
Ethernet (Per Port):	Link/Activity
SFP:	FX1, FX2

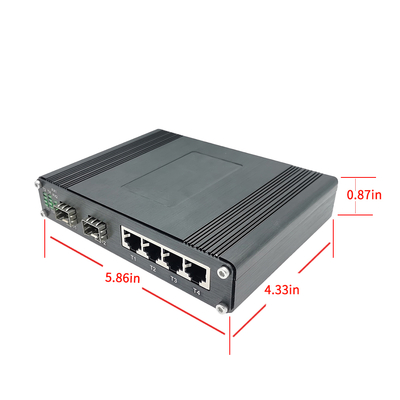

Dimensions (WxDxH):	150 x 115 x 30 mm
Weight:	0.5Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC204GP60	Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Multimode, Dual Fiber, SC, 550m
LNK-IMC204GP60-20	Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Dual Fiber, SC, 20KM
LNK-IMC204GPS60-20	Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, SC, 20KM
LNK-IMC204GPF60-20	Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, FC, 20KM
LNK-IMC204GP60-SFP	Industrial 4-port 10/100/1000BASE-T (4-port PoE++) + 2-port 100/1000BASE SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
