Industrial 4-Port 802.3bt PoE++ Switch with 2 SFP, 360W Power Budget

बड़ी छवि : Industrial 4-Port 802.3bt PoE++ Switch with 2 SFP, 360W Power Budget

उत्पाद विवरण:

उत्पत्ति के प्लेस:	ग्वांगडोंग, चीन
ब्रांड नाम:	E-link
प्रमाणन:	CE, RoHS, FCC, ISO9001
मॉडल संख्या:	LNK-IMC204GP100
दस्तावेज:	E-link LNK-IMC204GP100 Seri....1.pdf

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1 टुकड़ा
मूल्य:	$120-$159
पैकेजिंग विवरण:	औद्योगिक ईथरनेट POE स्विच मानक निर्यात पैकेज
प्रसव के समय:	5-12working दिन
भुगतान शर्तें:	टी/टी, वेस्टर्न यूनियन, मनीग्राम, पेपैल, क्रेडिट कार्ड
आपूर्ति की क्षमता:	1000pcs/महीना

संपर्क करें

विस्तृत उत्पाद विवरण

प्रसंस्करण प्रकार:	भंडार	योजक:	4 x RJ45
ऑप्टिकल बंदरगाह:	2 x 100/1000Base-FX (SFP, SC, FC, ST वैकल्पिक)	परिचालन तापमान:	-40 ° C से 80 ° C (-40 ° F से 176 ° F)
इनपुट शक्ति:	48 ~ 57V डीसी, निरर्थक शक्ति (6-पिन टर्मिनल ब्लॉक)	(Wxdxh):	150 x 115 x 30 मिमी
प्रमुखता देना:	Industrial PoE++ switch with SFP , 4-port PoE switch 360W budget , 802.3bt Ethernet switch industrial grade

Industrial 4-Port 802.3bt PoE++ Switch with 2 SFP, 360W Power Budget

Overview

The LNK-IMC204GP100 Series is a rugged industrial-grade switch featuring 4 Gigabit

PoE++ ports (up to 100W each) and 2 flexible 100/1000Base-X uplink ports. Designed for

harsh environments, it delivers high-power PoE for IP cameras, wireless APs, and other

demanding devices while ensuring reliable fiber uplink connectivity. With a wide temperature

range (-40°C to 80°C), redundant power inputs, and robust aluminum housing, this switch is

an ideal solution for mission-critical industrial and surveillance networks.

Features

4x 10/100/1000Base-T PoE++ Ports, up to 100W per port, total 360W budget

2x 100/1000Base-X uplinks (SFP/SC/FC/ST optional) for flexible fiber expansion

Supports IEEE 802.3af/at/bt PoE standards for diverse powered devices

Wide operating temperature from -40°C to 80°C for harsh environments

Redundant 48–57VDC power input with overload and reverse polarity protection

Compact aluminum enclosure with DIN-Rail/Wall-mount installation

Energy Efficient Ethernet (EEE) reduces power consumption during low traffic

MTBF >200,000 hrs, ensuring long-term network reliability

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	1M bits
Processing Type:	Store-and-Forward
Max Packet Length:	9K Bytes
Address Table Size:	2048 MAC Addresses
Interface
Connector:	4 x RJ45
Optical Port:	2 x 100/1000Base-FX (SFP, SC, FC, ST Optional)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	48~57V DC, Redundant Power (6-pin Terminal Block)
Power Consumption:	360W Max. (PoE in use)
Power Consumption:	5W Max. (PoE not in use)
Standard:	IEEE802.3af/at/bt
PoE:
Port:	RJ45 Port 1 ~ Port 4
Max. Power per Port:	100W Max per port
Power Pin Assignment	1/2(+), 3/6(-) or 4/5(+), 7/8(-)
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present

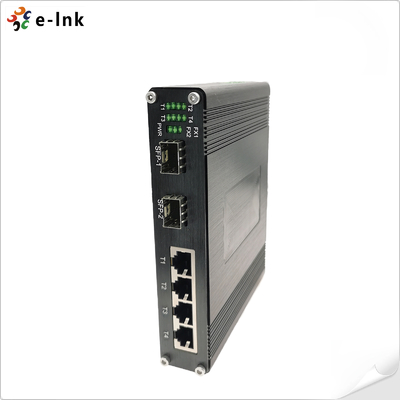

LED Indicators:
Power:	Power1, Power2 Status
PoE:	Per Port Status
Ethernet (Per Port):	Link/Activity
SFP:	FX1, FX2

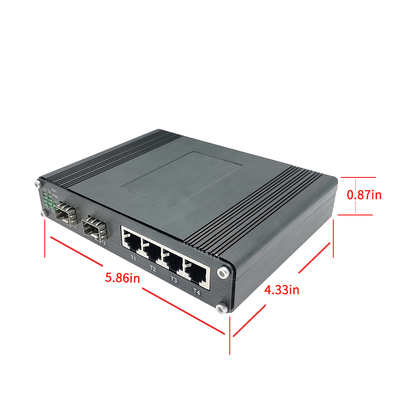

Dimensions (WxDxH):	150 x 115 x 30 mm
Weight:	0.5Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC204GP100	Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Multimode, Dual Fiber, SC, 550m
LNK-IMC204GP100-20	Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Dual Fiber, SC, 20KM
LNK-IMC204GPS100-20	Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, SC, 20KM
LNK-IMC204GPF100-20	Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, FC, 20KM
LNK-IMC204GP100-SFP	Industrial 4-port 10/100/1000BASE-T (4-port PoE++) + 2-port 100/1000BASE SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
