Unmanaged Industrial 8-Port Gigabit PoE+ Ethernet Switch 30W/Port Hardened

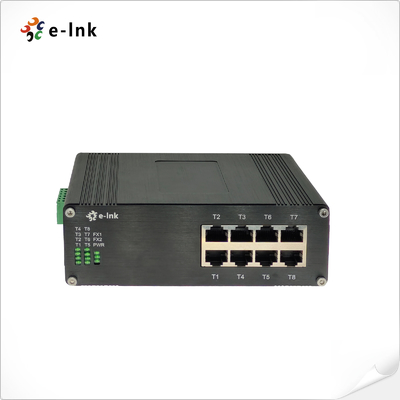

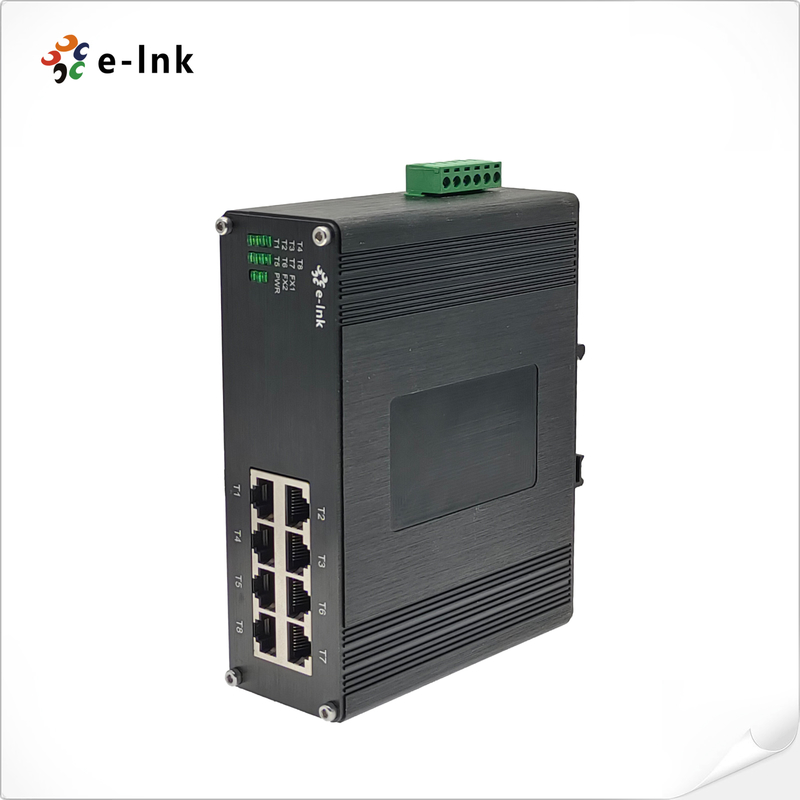

बड़ी छवि : Unmanaged Industrial 8-Port Gigabit PoE+ Ethernet Switch 30W/Port Hardened

उत्पाद विवरण:

उत्पत्ति के प्लेस:	ग्वांगडोंग, चीन
ब्रांड नाम:	E-link
प्रमाणन:	CE, RoHS, FCC, ISO9001
मॉडल संख्या:	LNK-IMC008GP
दस्तावेज:	1E-link Communication & Net...og.pdf

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1 टुकड़ा
मूल्य:	$90-$109
पैकेजिंग विवरण:	औद्योगिक ईथरनेट POE स्विच मानक निर्यात पैकेज
प्रसव के समय:	5-12working दिन
भुगतान शर्तें:	टी/टी, वेस्टर्न यूनियन, मनीग्राम, पेपैल, क्रेडिट कार्ड
आपूर्ति की क्षमता:	1000pcs/महीना

संपर्क करें

विस्तृत उत्पाद विवरण

बंदरगाहों:	8 × RJ45 (10/100/1000MBPS POE+)	पोई स्टैंडर्ड:	IEEE 802.3af/पर
बिजली इनपुट:	48-57VDC, निरर्थक टर्मिनल ब्लॉक	बिजली की खपत:	245W (POE ON), 5W (POE OFF)
आवास:	एल्यूमीनियम, आईपी 40, डिन-रेल/वॉल माउंट	DIMENSIONS:	150 × 115 × 50 मिमी
प्रमुखता देना:	Unmanaged industrial PoE+ Ethernet switch , 8-port Gigabit PoE switch hardened , Industrial Ethernet switch 30W per port

Unmanaged Industrial 8-Port Gigabit PoE+ Ethernet Switch 30W/Port Hardened

Overview

The LNK-IMC008GP Series is an unmanaged industrial Gigabit PoE+ Ethernet switch

featuring 8 RJ45 ports delivering up to 30W per port. With high-speed 1Gbps throughput,

16K MAC addresses, and 10K jumbo frame support, it ensures reliable data and power

delivery for IP cameras, wireless access points, and other powered devices. Rugged IP40

aluminum housing, redundant 48–57VDC inputs, and a wide -40°C to 80°C operating range

make it ideal for industrial and harsh-environment applications.

Features

8× 10/100/1000Base-TX PoE+ ports, 30W per port, total 245W

Unmanaged plug-and-play, no configuration required

High-performance switching: 16Gbps switch fabric, 2M-bit buffer, 10K jumbo frame, 16K

MAC addresses

Rugged industrial design: IP40 dustproof, aluminum enclosure, shock and vibration resistant

Wide temperature range: -40°C to 80°C

Redundant 48–57VDC power inputs with overload and reverse polarity protection

Low idle power consumption: 5W (PoE off)

Flexible mounting: DIN-Rail or wall-mountable

Energy-efficient: IEEE 802.3az EEE, supports 802.3x flow control

High reliability: MTBF >200,000 hrs, CE/FCC compliant

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE802.3x Flow control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	2M bits
Switch Fabric:	16 Gbps
Max Packet Length:	10K Bytes
Address Table Size:	16K MAC Addresses
Interface
Connector:	8 x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	245W Max. (PoE in use)
Power Consumption:	5W Max. (PoE not in use)
Standard:	IEEE802.3af/at
PoE:
Port:	RJ45 Port 1 ~ Port 8
Max. Power per Port:	30W Max per port (Alternative B Mode)
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power1, Power2 Status
PoE:	Per Port Status
Ethernet (Per Port):	Link/Activity
Dimensions (WxDxH):	150 x 115 x 50 mm
Weight:	0.6Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC008GP	Industrial 8-port 10/100/1000BASE-T (8-port PoE+) Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
