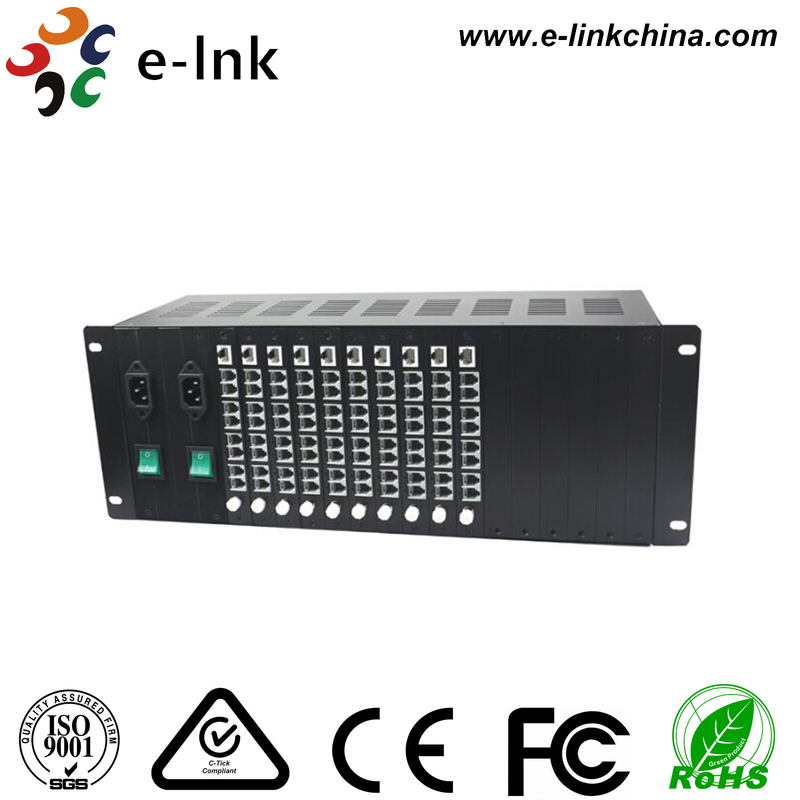

High Density 4U Mux Chassis 16 Slots Hot Swappable Modules Easy Install

बड़ी छवि : High Density 4U Mux Chassis 16 Slots Hot Swappable Modules Easy Install

उत्पाद विवरण:

उत्पत्ति के प्लेस:	चीन
ब्रांड नाम:	E-link
प्रमाणन:	CE, RoHS, FCC
मॉडल संख्या:	एलएनके-पीआर16-2ए

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1 टुकड़ा
मूल्य:	USD $139-159
पैकेजिंग विवरण:	4U टेलीफोन फाइबर MUX रैक मानक निर्यात पैकेज
प्रसव के समय:	3-10working दिन
भुगतान शर्तें:	एल/सी, डी/ए, डी/पी, टी/टी/टी, वेस्टर्न यूनियन, मनीग्राम, पेपैल, क्रेडिट कार्ड
आपूर्ति की क्षमता:	1000pcs/महीना

संपर्क करें

विस्तृत उत्पाद विवरण

संरचना:	19 ”4U रैक	पावर आउटपुट:	DC5V 16A
बिजली इनपुट:	एसी वोल्टेज: एसी 100 ~ 260V; आवृत्ति: 50/60 हर्ट्ज	आयाम (मिमी):	485x280x176 (एलएक्सडब्ल्यूएक्सएच)
वज़न:	7.4 किग्रा	परिचालन तापमान:	-30°C से +55°C
प्रमुखता देना:	4U Mux Chassis 16 slots , Hot swappable DVI converter modules , High density fiber converter chassis

4U Telephone Fiber Mux Rack

4U Telephone Fiber Mux Rack Overview

The LNK-PR-4U is a high-capacity, professional 4U chassis designed for robust and flexible telecommunications

deployment. Supporting a hybrid combination of up to 16 card-type modules (4-channel or 8-channel telephone

fibre multiplexers), it allows for a scalable system configuration of up to 128 channels. Engineered for

maximum reliability, it features a robust switch mode power supply (SMPS) that accepts 110/220 V AC input.

Its advanced electrical design prevents single-module failures from affecting others, ensuring unmatched

system stability. Built-in cooling fans enhance the chassis's longevity, and front-accessible, hot-swappable

modules and clear LED status indicators offer effortless maintenance, eliminating the need for system

downtime during upgrades or replacements.

4U Telephone Fiber Mux Rack Features

► Active/standby dual power supply design ensures uninterrupted system operation
► Equipped with two power supply options for reliable performance in diverse operating environments
► Supports simultaneous operation of 4-Channel or 8-Channel card-type Telephone Fiber Mux,

greatly enhancing system adaptability
► Hot-swappable modules allow easy maintenance and upgrades without service interruption

4U Telephone Fiber Mux Rack Technical Indexes

Parameter	Specifications
Number of slots	16
Structure	19” 4U rack
Card-type converter support	4Ch or 8Ch Card-type Telephone Fiber Mux
Power input	AC Voltage: AC 100~260V; frequency: 50/60 Hz
Power output	DC5V 16A
MTBF	> 100,000 hours
Power configuration	Single power supply; or Dual power supply for warm backup mode
Dimension (mm)	485x280x176 (LxWxH)
Weight	7.4KG
LED indication	POWER (power supply)
Construction	Metal
Operating temperature	-30°C to +55°C
Storage Temperature	-40°C to +85°C
Relative humidity	5%~90% (non condensing)

4U Telephone Fiber Mux Rack Ordering Information

Model	Description
LNK-PR16-2A	19" 4U Rack-Mount Chassis, 16-Slot, 16pcs 4CH or 8CH Card-type telephone fiber mux can be put in the Chassis, Dual Power Supply

4U Telephone Fiber Mux Rack Application

High Density 4U Mux Chassis 16 Slots Hot Swappable Modules Easy Install 0

After-Sales and Warranty Policy

It is composed of online customer service and telephone customer service, providing product consultation,

remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure

by technicians and man-made damage caused by non-natural disasters, the purchaser can directly

go to the purchasing point to replace the same type of products.Or a product of comparable performance.

If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.

[The following circumstances do not fall within the scope of replacement and free maintenance]

1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
