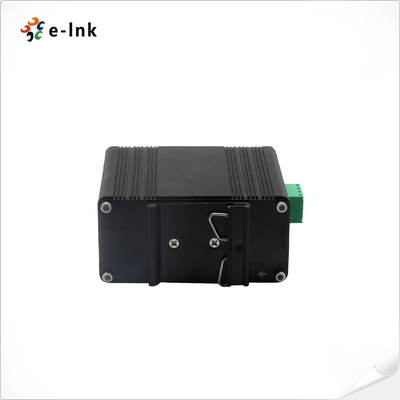

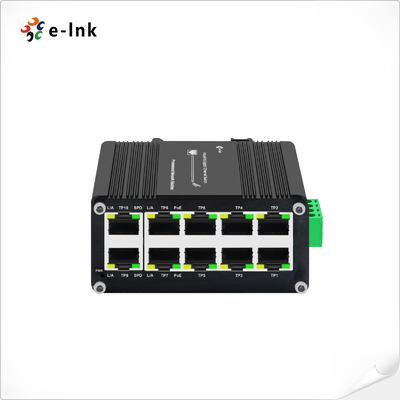

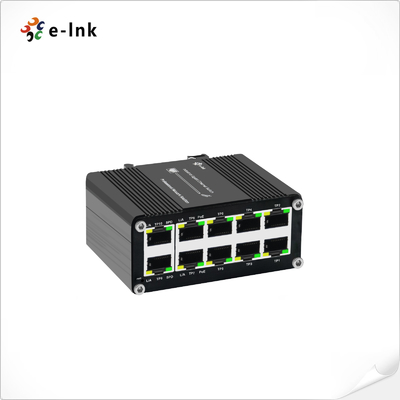

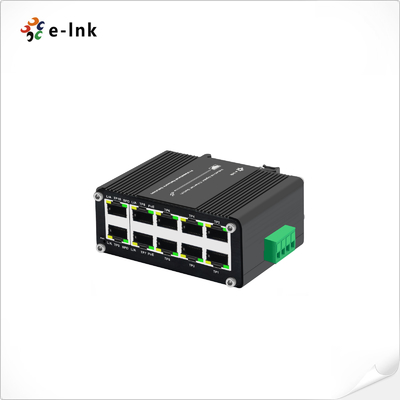

Compact Industrial 8-Port PoE+ 2 Port Ethernet Switch, 240W Output, for Harsh Environments

Compact Industrial 8-Port PoE+ 2 Port Ethernet Switch, 240W Output, for Harsh Environments
Compact Industrial 8-Port PoE+ 2 Port Ethernet Switch, 240W Output, for Harsh Environments Compact Industrial 8-Port PoE+ 2 Port Ethernet Switch, 240W Output, for Harsh Environments Compact Industrial 8-Port PoE+ 2 Port Ethernet Switch, 240W Output, for Harsh Environments Compact Industrial 8-Port PoE+ 2 Port Ethernet Switch, 240W Output, for Harsh Environments Compact Industrial 8-Port PoE+ 2 Port Ethernet Switch, 240W Output, for Harsh Environments Compact Industrial 8-Port PoE+ 2 Port Ethernet Switch, 240W Output, for Harsh Environments

बड़ी छवि :  Compact Industrial 8-Port PoE+ 2 Port Ethernet Switch, 240W Output, for Harsh Environments

उत्पाद विवरण:
Place of Origin: China
ब्रांड नाम: E-link
प्रमाणन: ISO9001, CE, RoHS, FCC
Model Number: LNK-IMC010GPB
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 1PC
मूल्य: US$49.9/pc
Packaging Details: Mini Industrial PoE Switch Standard Export Package
Delivery Time: 2~7 working days
Payment Terms: Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability: 5000pcs per month
विस्तृत उत्पाद विवरण
Product Name: Industrial 10 Port PoE Switch Input Power: 12~48VDC Redundant power with polarity reverses protection function
Dimensions (WxDxH): 95 x 88 x 46mm Weight: 400g
Mounting Options: DIN-Rail mount Power Consumption:: <250W (Non-PoE<10W)
प्रमुखता देना:

2 Port Industrial Ethernet Switch

,

240W Industrial Ethernet Switch

Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch

Overview

The LNK-IMC010GPB Mini Compact Industrial 8-Port 10/100/1000T 802.3at PoE+ Switch is designed for narrow-space installations and harsh industrial environments. Offering 240W PoE+ output, this compact switch supports wire-speed Gigabit performance and is equipped with 8 IEEE 802.3at PoE+ ports and 2 10/100/1000BASE-T RJ45 uplink ports. It operates with a wide 12-48V DC input for power redundancy, making it ideal for power-sensitive industrial applications.

Built with a rugged IP40 metal housing, the switch offers immunity against electromagnetic interference and electrical surges, perfect for environments like factory floors or traffic control cabinets without air conditioning. Its fanless design ensures silent operation, while its operating temperature range from -40°C to 80°C guarantees reliability in even the toughest conditions. No software configuration is required, and it seamlessly supports both standard and high-powered devices.


Features


► 10 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports

► Up to 8 ports of IEEE 802.3af/at devices powered

► Up to 240-watt PoE budget

12~48V DC redundant power with reverse polarity protection

► Supports 802.3x Flow control

► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail installation

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature
Technical Indexes

Ethernet
Standards:IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate:14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer:2Mbits
Packet Length:9216bytes
MAC Address Table:4K entries
Switch Fabric:20Gbps/non-blocking
Switch Throughput (packet per second)14.88Mpps@64bytes
Interface
Connector:

10 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
8 ports with 802.3at PoE+ injector function (Port 1 to 8)

PoE (Power over Ethernet)
Standard:

IEEE 802.3at Power over Ethernet Plus/PSE
IEEE 802.3af Power over Ethernet/PSE

Port:RJ45
Power Pin Assignment4/5(+), 7/8(-)
PoE Budget:Up to 240-watt PoE budget
Max. Number of Class 4 PDs8
Environmental
Operating Temperature:-40°C to 80°C (-40°F to 176°F)
Storage Temperature:-40°C to 85°C (-40°F to 185°F)
Relative Humidity:5% to 95% non-condensing
MTBF> 100,000 hrs
Electrical and Mechanical
Input Power:

48~57VDC
Redundant power with polarity reverses protection function

Power Consumption:<250W (Non-PoE<10W)
Power Input Overload:Automatic Resettable
Reverse Polarity:Present
Dimensions (WxDxH):95 x 88 x 46mm
Weight:400g
Casing:Aluminum Case
Mounting Options:DIN-Rail mount
LED Indicators:
PWRPower
L/ALink/Activity
SPDData Rate
PoEMax 30W per port
Regulatory Approvals
EMCCE (EN55032, EN55035)
EMIFCC Part 15 Subpart B
EMSEN61000-4-2 (ESD) EN61000-4-3 (RS)
EN61000-4-4 (EFT) EN61000-4-5 (Surge)
EN61000-4-6 (CS) EN61000-4-8 (PFMF) EN61000-4-11
SafetyCE (EN60950-1)
Surge Protection8KV for PoE, RJ-45 and SFP ports
ShockIEC60068-2-27
FreefallIEC60068-2-32
VibrationIEC60068-2-6































































Ordering Information

ModelDescription
LNK-IMC010GPBMini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch
Mounting Options► Default DIN-Rail Bracket installed.
Power Options► Power Supply is to be purchased separately

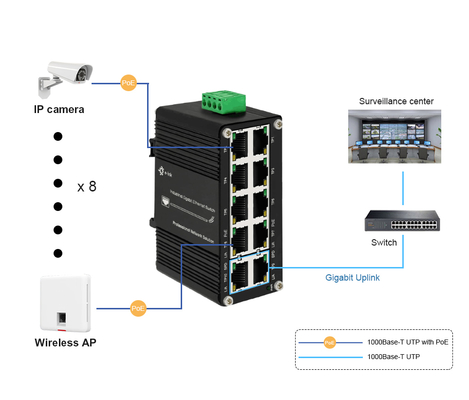

Application
Compact Industrial 8-Port PoE+ 2 Port Ethernet Switch, 240W Output, for Harsh Environments 0
