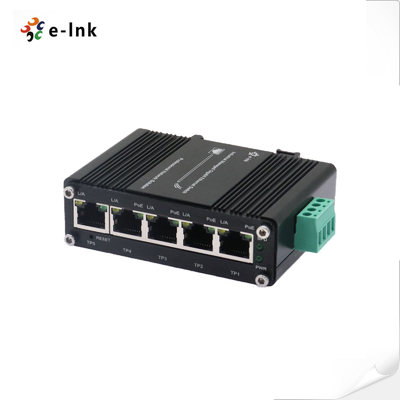

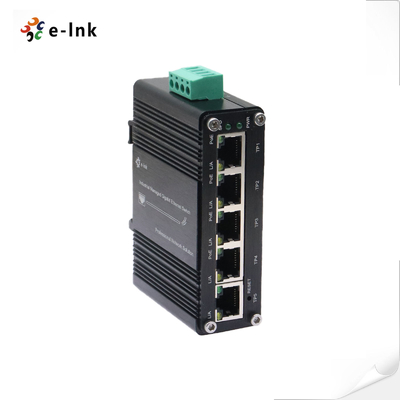

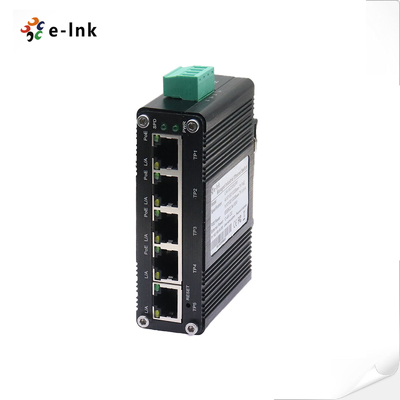

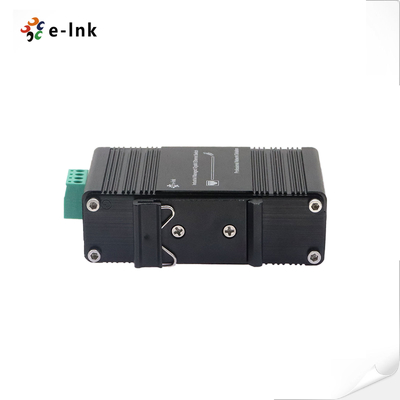

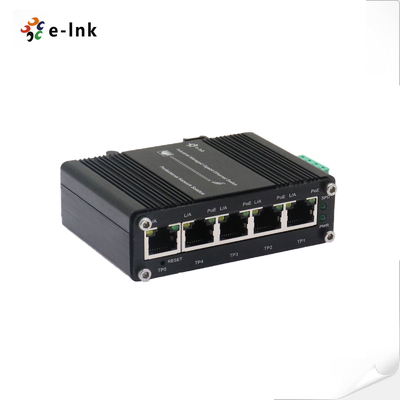

Managed Industrial Gigabit PoE Switch, 4 PoE Ports + 1 Uplink, 12–48V DC

Managed Industrial Gigabit PoE Switch, 4 PoE Ports + 1 Uplink, 12–48V DC
Managed Industrial Gigabit PoE Switch, 4 PoE Ports + 1 Uplink, 12–48V DC Managed Industrial Gigabit PoE Switch, 4 PoE Ports + 1 Uplink, 12–48V DC Managed Industrial Gigabit PoE Switch, 4 PoE Ports + 1 Uplink, 12–48V DC Managed Industrial Gigabit PoE Switch, 4 PoE Ports + 1 Uplink, 12–48V DC Managed Industrial Gigabit PoE Switch, 4 PoE Ports + 1 Uplink, 12–48V DC Managed Industrial Gigabit PoE Switch, 4 PoE Ports + 1 Uplink, 12–48V DC

बड़ी छवि :  Managed Industrial Gigabit PoE Switch, 4 PoE Ports + 1 Uplink, 12–48V DC

उत्पाद विवरण:
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: E-link
प्रमाणन: CE/FCC/Rohs/ISO9001
मॉडल संख्या: LNK-IMC005GPM श्रृंखला
भुगतान & नौवहन नियमों:
न्यूनतम आदेश मात्रा: 1 पीसी
मूल्य: US$39.9/pc
Packaging Details: Industrial Gigabit PoE Switch Standard export package
प्रसव के समय: 2-7 दिन
भुगतान शर्तें: टी/टी, एल/सी, वेस्टर्न यूनियन, मनीग्राम
आपूर्ति की क्षमता: 1000 पीसीएस/माह
विस्तृत उत्पाद विवरण
निवेश शक्ति:: 12~48V डीसी (टर्मिनल ब्लॉक) Power Consumption:: <125W (Non-PoE<6W)
आकार: 95 x 70 x 29 मिमी बढ़ते विकल्प: डीआईएन-रेल / वॉल-माउंट
Weight:: 0.25Kg Casing: Aluminum Case
प्रमुखता देना:

Managed Gigabit PoE Switch

,

12–48V DC PoE Switch

,

1 Uplink Industrial Gigabit PoE Switch

Mini Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch

Overview

The LNK-IMC005GPM is a Mini Industrial Managed Gigabit PoE Switch designed for harsh industrial environments. It features 4 x 10/100/1000BASE-T PoE+ ports and 1 Gigabit uplink port, delivering IEEE 802.3at PoE+ power up to 30W per port for IP cameras, wireless APs, and VoIP phones. The switch offers a wide 12~48V DC power input, ensuring power redundancy and reliable performance in demanding conditions.

Built with a rugged IP40-rated metal housing and supporting DIN-rail or wall mounting, this switch withstands vibration, shock, and extreme temperatures from -40°C to 80°C. It is CE and FCC certified and has passed a 100% burn-in test for guaranteed durability. With its advanced managed features, the LNK-IMC005GPM provides secure, stable, and flexible Ethernet connectivity, making it ideal for industrial automation, ITS (Intelligent Transportation Systems), military, and utility applications where commercial devices cannot operate


Features

► 5 x 10/100/1000BASE-T ports

► 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ (Port-1 to Port-4)

► 12~48V DC wide range power input

► Supports 802.3x Flow control

► Supports WEB Management

► Supports DIN-Rail and Wall-mount installation

► Up to 120-watt PoE budget (48V DC),

► Up to 90-watt PoE budget (24V DC),

► Up to 60-watt PoE budget (12V DC)

► -40°C to 80°C (-40°F to 176°F) operating temperature



Technical Indexes

Ethernet
Standards: IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3at Power over Ethernet Plus PSE
IEEE 802.3af Power over Ethernet Plus
Forward & Filtering Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer: 1Mbits
Packet Length: 10Kbytes
MAC Address Table: 8K
Switch Fabric: 10Gbps/non-blocking
Exchange Property

Backplane bandwidth: 20Gbps;
Packet forwarding rate: 14.88Mpps

Connector:

5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports

4 ports with 802.3at PoE+ injector function (Ports 1 to 4)

PoE (Power over Ethernet)
Standard: IEEE802.3af/at
Port: RJ45
Power Pin Assignment

1/2(+), 3/6(-) or4/5(+), 7/8(-)

PoE Budget: Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Electrical and Mechanical
Input Power: 12~48VDC (Terminal Block)
Power Consumption: <125W (Non-PoE<6W)
Power Input Overload: Automatic Resettable

Reset Button

Support

Reverse Polarity: Present
Dimensions (WxDxH): 95 x 70x 29mm
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
LED Indicators:
PWR: Power
L/A: Link/Activity
PoE: PoE Status
WEB Management Features
System Settings Device Info; Account Settings; Restoring; Reboot; Upgrade
Port Management Port Settings; Port Mirroring; Port Statistics; Rate Limit
VLAN Settings 802.1Q VLAN; PVID Settings; Hybrid Port
QOS Settings Priority Selection; Scheduling Mode
Loop Detection Support
Saving Settings Get Configuration; Restore Configuration; Saving Configuration
Default IP 192.168.40.253
Default User Name admin
Default Password admin
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55032:2017
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)


Order Information


Model Description
LNK-IMC005GPM Mini Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options

► Power Supply is to be purchased separately

► Recommend MeanWell NDR-120-48

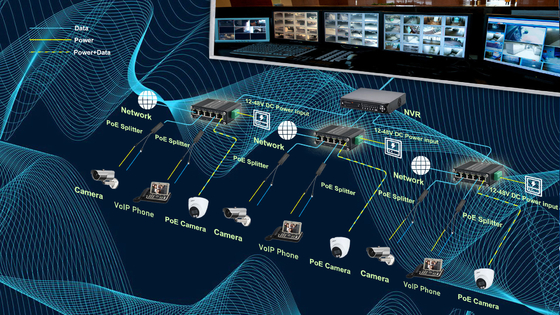

Application
Managed Industrial Gigabit PoE Switch, 4 PoE Ports + 1 Uplink, 12–48V DC 0
