DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender

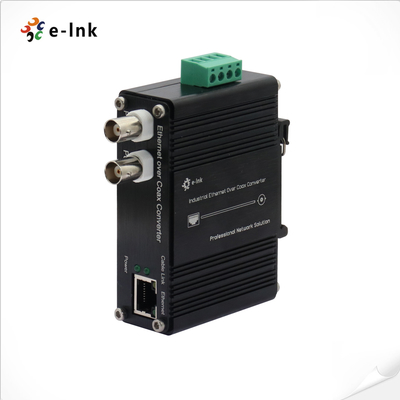

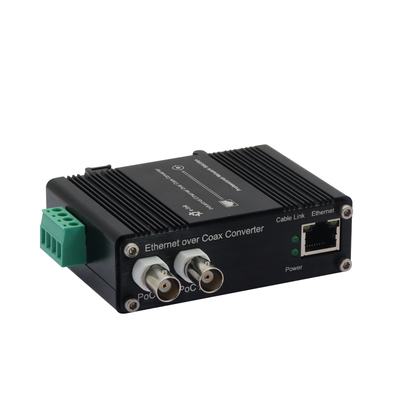

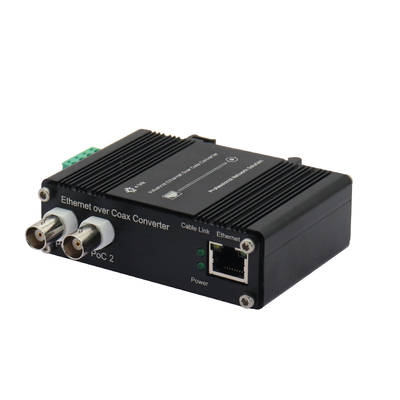

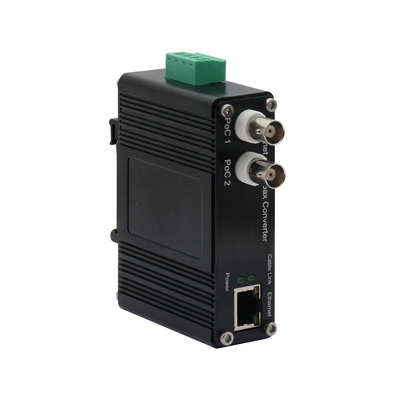

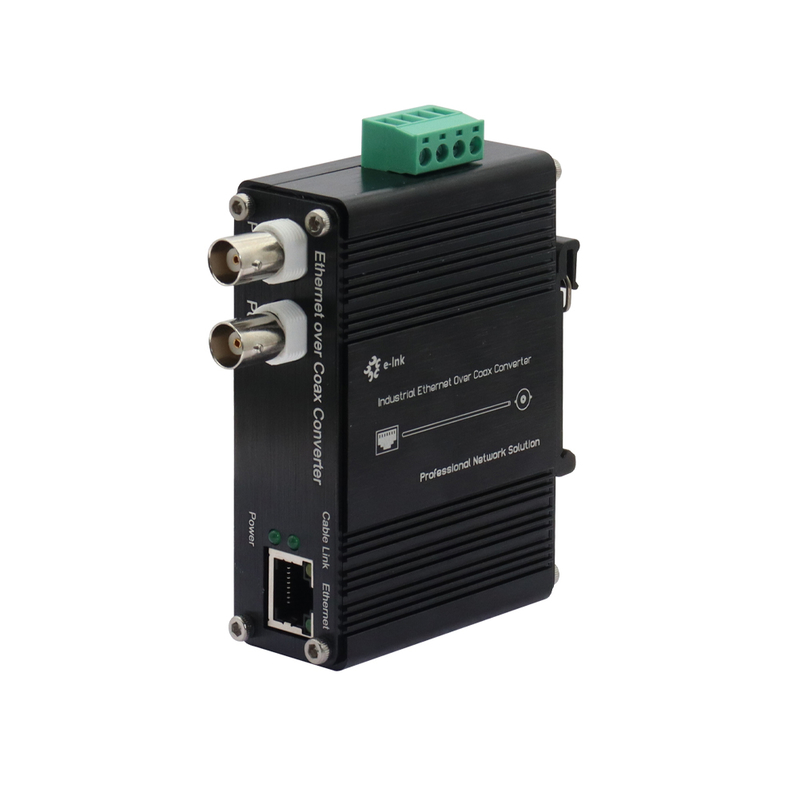

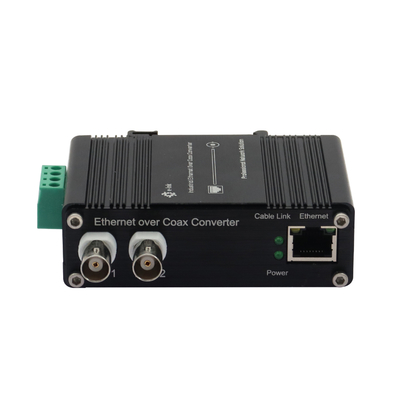

बड़ी छवि : DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender

उत्पाद विवरण:

उत्पत्ति के प्लेस:	चीन
ब्रांड नाम:	E-link
प्रमाणन:	CE FCC RoHS
मॉडल संख्या:	LNK-DEC110

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1 पीसी
मूल्य:	Negotiated
पैकेजिंग विवरण:	ईथरनेट ओवर कोएक्सियल कनवर्टर मानक निर्यात पैकेज
प्रसव के समय:	3-10 कार्य दिवस
भुगतान शर्तें:	टी/टी, वेस्टर्न यूनियन, मनीग्राम, पेपैल
आपूर्ति की क्षमता:	2000 प्रति मुंह

संपर्क करें

विस्तृत उत्पाद विवरण

अधिकतम दूरी:	Cat5UTP 100 मीटर तक	इनपुट शक्ति:	DC18V ~ 48V (POE: DC48V)
बिजली की खपत:	8W मैक्स। (POC उपयोग में नहीं)/60W अधिकतम। (उपयोग में POC)	मानक:	IEEE802.3af/at
आयाम (डब्ल्यू एक्स डी एक्स एच):	95 × 67 × 30 मिमी	वजन:	0.5 किलो
प्रमुखता देना:	Industrial Ethernet over Coax Extender , DIN Rail Ethernet over Coax Extender , 10/100Base-TX Ethernet over Coax Extender

DIN-Rail Industrial 10/100Base-TX Ethernet over Coax Extender

Ethernet over Coax Extender Overview

The LNK-DEC110 series DIN rail Ethernet to coaxial converter is a new type of Ethernet extension device

that can simultaneously transmit network signals and power through existing coaxial cables, achieving

multi-channel power + data transmission, with a maximum distance of up to 1200 meters

(power supply distance 300 meters). Dual BNC interfaces support the simultaneous connection of

two branches, with a total power supply of 100W, with a maximum power of 50W per channel.

The network speed can reach up to 100Mbps, with excellent lightning protection and anti-interference performance.
The device can be equipped with an optional industrial-grade intelligent automatic monitoring module

to detect network communication anomalies in real time and automatically restore the link to ensure

stable and uninterrupted network transmission and protect the security of the monitored area. It is widely used

in industrial environments such as CCTV monitoring and remote network extension.

Ethernet over Coax Extender Features

Transmit 10/100 Mbps Full Duplex Ethernet up to 1200m (without PoE) or 300m (with PoE)
Transmission Media: Coaxial Cable(Best), 586B, CAT5e/6
Input Voltage: DC18V~48V (POE: DC48V).
Support Power over Coax & Power over Ethernet at same time.
2pc BNC design, support to connect Max. 7 channels branch line
Operation: Use the existing network, easy to install, Plug & Play. Convenient and efficient.
Code Standard: abide by IEEE802.3 10/100 base-TX Ethernet standard protocol
Advanced 128-bit AES encrypted transmission and PoE+ power technology
Excellent Protection: Built-in transient protection; industrial temperature range. Excellent
lightning protection and strongly Anti-interference, surge protection.

Ethernet over Coax Extender Technical Indexes

Ethernet
Standards	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX
	IEEE802.3af Power Over Ethernet
	IEEE802.3at Power Over Ethernet
Cabling	10Base-T: Cat 3,4,5, or above
	100Base-TX: Cat5 or above
Maximum Distance	Cat5UTP up to 100m
Connector	1 x RJ45
Coaxial
Cabling	Coaxial Cable (75 ohm)
Connector	1 BNC (female)
Distance	Up to 1200m (no PoE), 300m (with PoE)
Data Rate
Downlink (TX to RX)	90Mbps (Max.)
Uplink (RX to TX)	90Mbps (Max.)
Technology	Power Line Communication (PLC)
Protection
Reverse Polarity	Present
Electrical and Mechanical
Input Power	DC18V~48V (PoE: DC48V)
Power Consumption	8W Max. (PoC not in use)
Power Consumption	60W Max. (Poc in use)
LED Indicators
Power (Power)	RED (Power On: keep lighting; Power Off: lighting off)
Coax (Cable Link)	GREEN (Flicker: signal transmission)
Ethernet	SPD, LINK/ACT, PoE(Transmitter)
PoE
Standard	IEEE802.3af/at
Mode	B Mode
Port	RJ45
Max. Power Per Port	25.5W max.at RX(Powered Device)
Max. Power Per Port	30W Max.at TX(Power Souring Equipment)
Mode	Positive(VCC+): RJ45 Pin 4,5
Mode	Negative(VCC-):RJ45 Pin 7,8
Dimensions (W x D x H)	95 × 67 × 30 mm
Weight	0.5kg
Casing	Aluminum case
Environmental
Operation Temperature	-10˚C to 60˚C (14˚F to 140˚F)
Storage Temperature	-40˚C to 85˚C (-40˚F to 185˚F)
Relative Humidity	5% to 90% non-condensing
MTBF	> 100,000 hrs
Regulatory Approvals	ISO9001 FCC Part 15 Class A EN55022 Class A Surge Protection RJ45: 1KV BNC: 2KV Power: 500V
