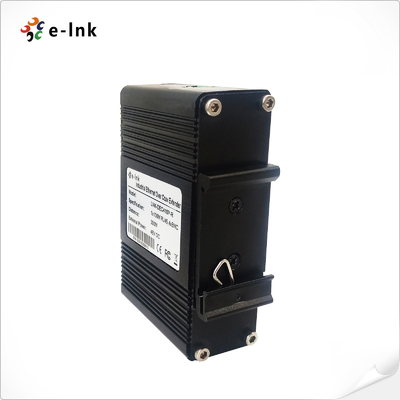

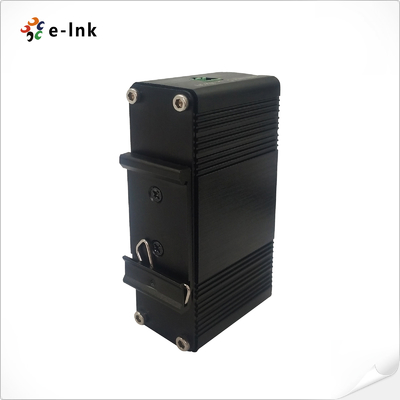

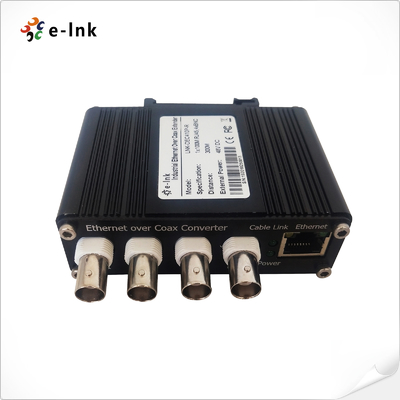

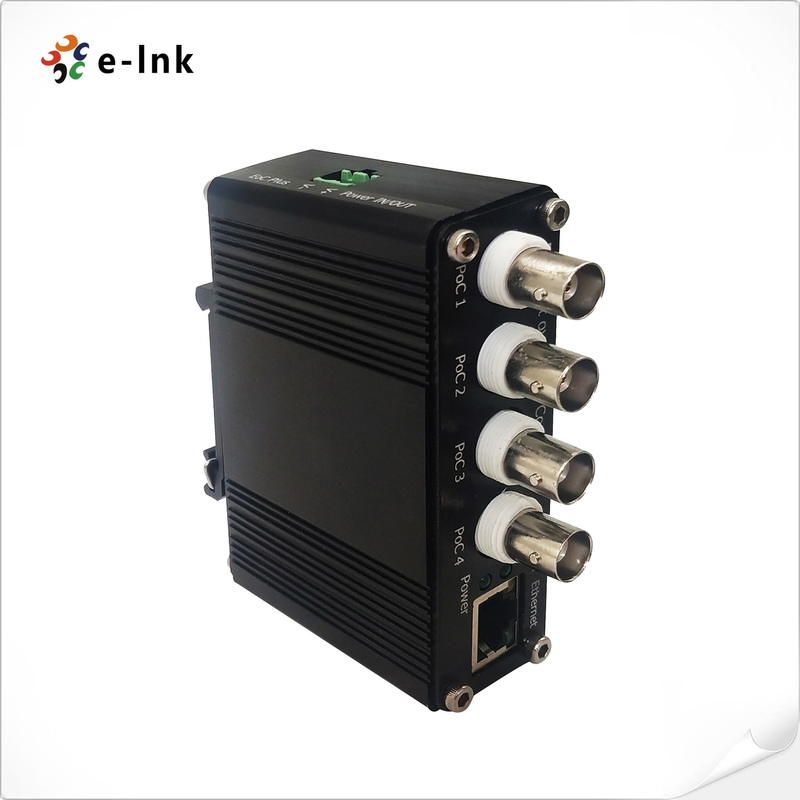

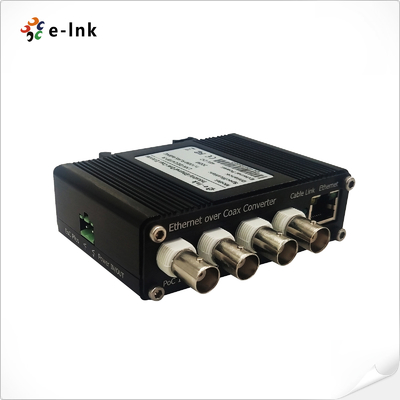

DIN-Rail Ethernet over Coax Receiver with 4-Channel Input and PoC Function

DIN-Rail Receiver of 4-port Coax to 1-port 10/100Base-TX Ethernet Switch with PoC

Ethernet over Coax Receiver​ Overview

This DIN-rail EOC receiver, used in conjunction with the LNK-DEC110P-T transmitter, aggregates

four 10/100Base-TX Ethernet signals over coaxial cable to a single 10/100Mbps Ethernet port,

with a maximum transmission distance of 800 meters. Supporting PoC technology, it eliminates

the need for additional power at the transmitter or PoE-enabled IP camera. It's ideal for

upgrading analog surveillance systems to network-based systems using existing coaxial cables and

is widely used in CCTV system upgrades and remote network expansion.

Ethernet over Coax Receiver​ Features

• Ethernet Extension: Security Link over Coax
• Support DIN-Rail mount installation
• Connecting up to 4 x LNK-DEC110P and IP Cameras
• 1000Mbps Full-duplex communication
• Power over Coaxial
• Data Rate up to (per port): 40Mbps (Downlink)/ 10Mbps (Uplink)
• Max. Distance: 800m over Coax (RG59/U)
• Auto MDI/MDI-X for reliable detection and correction for straight-through and crossover cables
• External 48~57VDC power input
• Wall mount installation

Ethernet over Coax Receiver Technical Indexes

Ethernet over Coax Receiver Dimension & Size

Ethernet over Coax Receiver Ordering Information

Ethernet over Coax Receiver Application
