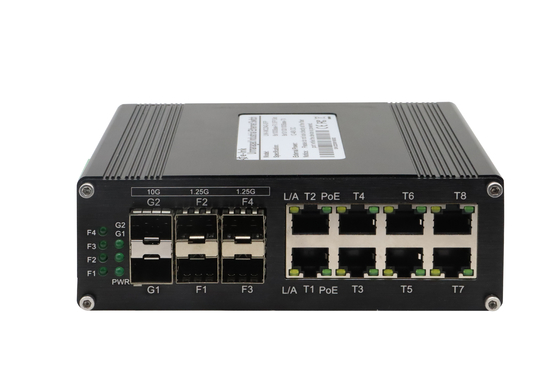

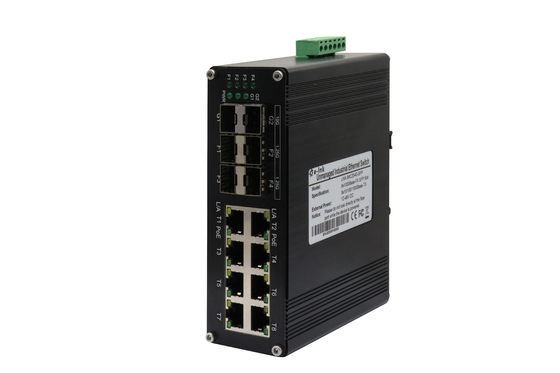

8-Port 10/100/1000Base-T 802.3at PoE + 6-Port 1000Base-X SFP Hardened Ethernet Switch

बड़ी छवि : 8-Port 10/100/1000Base-T 802.3at PoE + 6-Port 1000Base-X SFP Hardened Ethernet Switch

उत्पाद विवरण:

Place of Origin:	China
ब्रांड नाम:	E-link
प्रमाणन:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC608GP-SFP

भुगतान & नौवहन नियमों:

Minimum Order Quantity:	1 PC
मूल्य:	negotiable
पैकेजिंग विवरण:	एसएफपी ईथरनेट स्विच मानक निर्यात पैकेज
प्रसव के समय:	2~7 कार्य दिवस
भुगतान शर्तें:	पेपैल, टीटी, वेस्टर्न यूनियन, मनीग्राम, अलीपे
आपूर्ति की क्षमता:	प्रति माह 5000 पीसी

संपर्क करें

विस्तृत उत्पाद विवरण

Connector:	8 x RJ45	ऑप्टिकल बंदरगाह:	6 x 1000Base-X SFP
परिचालन तापमान:	-40 ° C से 80 ° C (-40 ° F से 176 ° F)	Input Power:	48~57VDC, Redundant Power (6-pin Terminal Block)
Dimensions (WxDxH):	149 x 114 x 50 mm	Mounting Options:	DIN-Rail mount
प्रमुखता देना:	802.3at PoE Ethernet Switch , 8-Port PoE Ethernet Switch , Hardened PoE Ethernet Switch

Industrial 8-Port 10/100/1000T 802.3at PoE + 6-Port 1000X SFP Ethernet Switch

Overview
The LNK-IMC608GP-SFP Series is a hardened industrial Ethernet switch designed for resilient and
versatile connectivity in demanding environments. It features 8 PoE+ ports (10/100/1000Base-T, IEEE
802.3at) and 6 SFP ports (1000Base-X), combining copper and fiber connectivity options. The switch
offers 8 RJ45 ports for standard Ethernet devices (auto MDI/MDI-X, Full/Half duplex) and 6 fiber ports
(1000Base-X) compatible with single-mode or multi-mode fibers (1 or 2 core). This configuration enables
seamless integration of IP cameras, wireless access points, and other network devices across remote
locations, leveraging gigabit speeds and centralized power distribution. Its hardened design and managed
capabilities ensure reliable performance and simplified deployment, making it an optimal solution for
industrial networks requiring scalable, secure connections between distributed devices.
Features

► IEEE802.3af/at compliant

► Supports 802.3x Flow control

► 9K Bytes Jumbo Frame

► Redundant Power Inputs

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40 Aluminum Case

► Supports DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature

► 8x10/100/1000Base-T + 6x1000Base-X SFP

► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

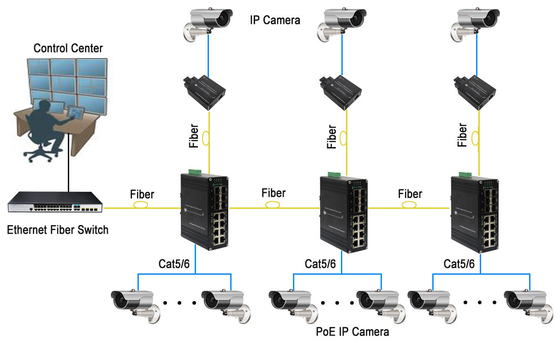

Application
8-Port 10/100/1000Base-T 802.3at PoE + 6-Port 1000Base-X SFP Hardened Ethernet Switch 0

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE802.3p QoS
	IEEE802.1d Spanning Tree
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	2.75M bits
Processing Type:	Store-and-Forward
Max Packet Length:	9K Bytes Jumbo Frame
Address Table Size:	8K MAC Addresses
Interface
Connector:	8 x RJ45
Optical Port:	6 x 1000Base-X SFP
PoE (Power over Ethernet)
Standard:	IEEE 802.3at Power over Ethernet Plus
Standard:	IEEE 802.3af Power over Ethernet
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 240-watt PoE budget
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	8W Max.(PoE in Use<240W)
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power Status
Ethernet(Per Port):	Link/Activity
PoE (Optional)	PoE Status
Fiber:	Gigabit SFP Port: F1~F6
Dimensions (WxDxH):	149 x 114 x 50 mm
Weight:	0.55Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC608GP-SFP	Industrial 8-Port 10/100/1000T 802.3at PoE + 6-Port 1000X SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed
Power Options	► DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
