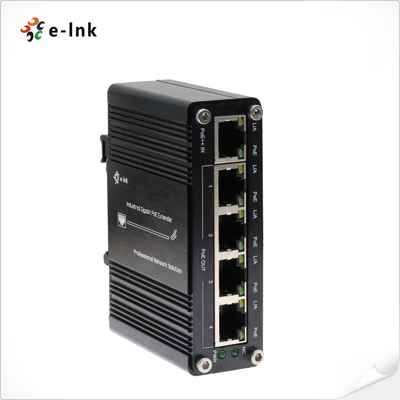

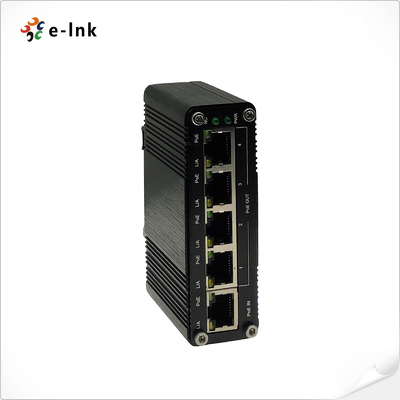

LNK-IPE104-90 Industrial PoE Extender, 1-Port In, 4-Port Out, 802.3af/at

Industrial 1-Port 802.3at PoE+ to 4-Port 802.3af/at Gigabit PoE Extender

Industrial PoE Extender Overview

The LNK-IPE104-90 is an industrial-grade, 1-input, 4-output PoE extender designed for point-

to-multipoint PoE applications . It draws up to 95W of power from one 802.3bt PoE++ input port

and provides a total of 75W of PoE power to four PoE output ports . This device extends

the Gigabit Ethernet data and PoE power range from the standard 100 meters to 200 meters ,

and can simultaneously power up to four powered devices (PDs) such as network cameras

and wireless access points. The LNK-IPE104-90 features a plug-and-play design that requires

no external power supply, easily expanding PoE ports and reducing cabling costs. It is suitable

for security surveillance, wireless network coverage, industrial automation.

Industrial PoE Extender Features

► 10/100/1000Mbps Ethernet Ports

► 1 RJ-45 PoE/PD + 4 RJ-45 PoE/PSE

► IP40-rated aluminum case

► Can be Powered by IEEE 802.3at 30W Power Sourcing Equipment

► Can Power IEEE 802.3af PoE, IEEE 802.3at Powered Devices

► Extends an additional 100m for PoE network. Daisy chain support connection up

to 3 PoE Extenders for a total PoE+ network extension of 400m (1,312 ft.)

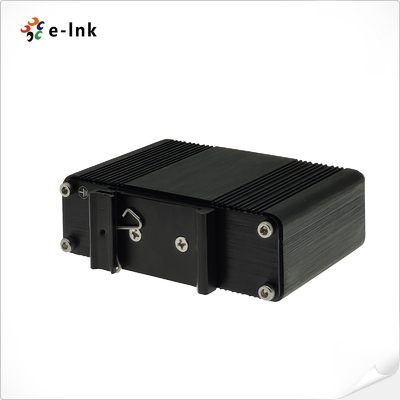

► Support DIN-Rail & Wall-mount installation

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

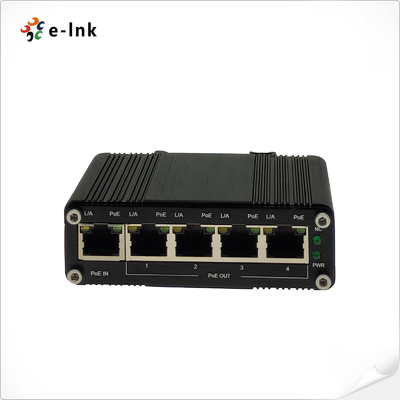

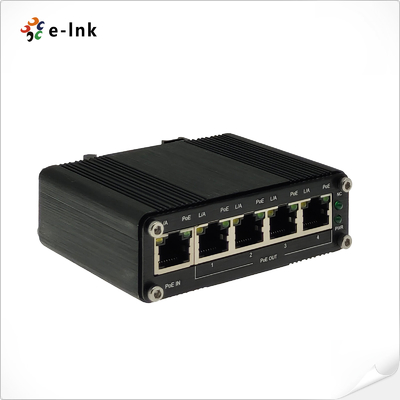

Industrial PoE Extender Panel & Interface

Industrial PoE Extender Technical Indexes

Industrial PoE Extender Ordering Information
