Industrial Gigabit PoE Splitter, 19VDC Output, IEEE 802.3af/at/bt Compliant

Industrial 10/100/1000Mbps 802.3bt PoE+ +Splitter Output Voltage 19VDC

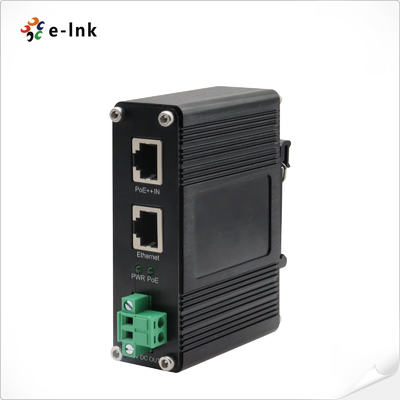

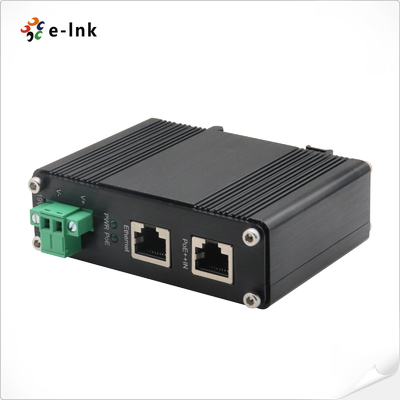

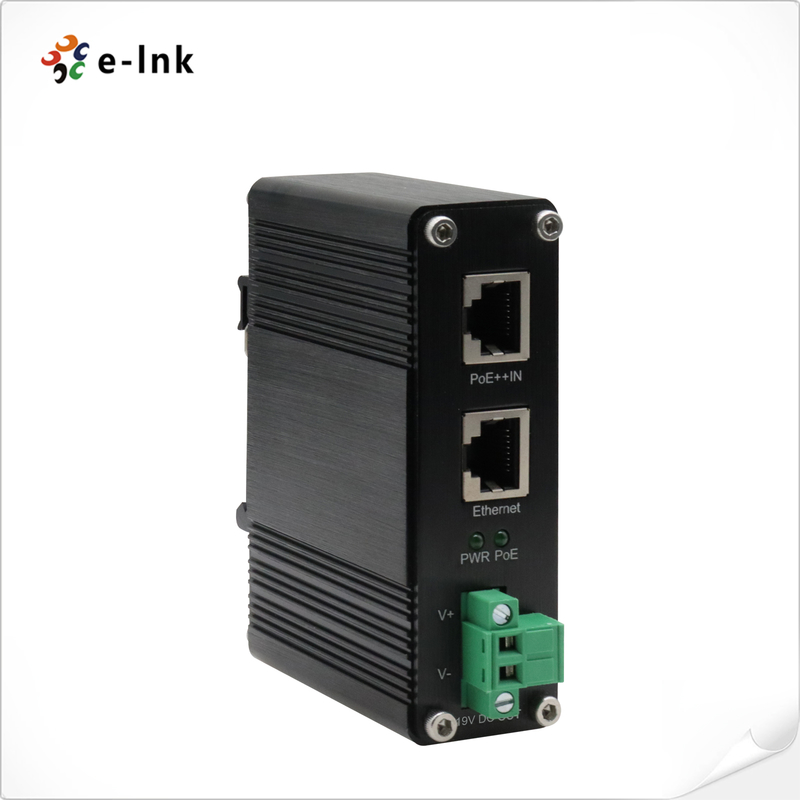

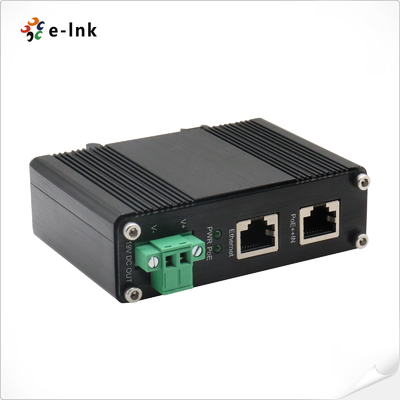

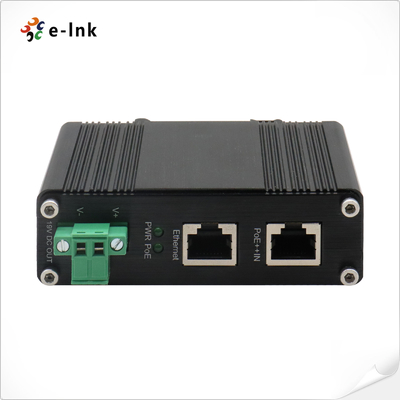

Industrial Gigabit PoE Splitter Overview

The LNK-INS901-19V series is an industrial-grade Gigabit PoE splitter designed to separate data

and power from a PoE Ethernet port, transmitting data through an RJ-45 connector and outputting

19VDC power to power non-PoE devices via a terminal block. Compliant with IEEE802.3af/at/bt standards
, this device can be connected directly to a PoE switch or used in conjunction with

the LNK-INJ-48-95W PoE injector . It offers transmission speeds up to Gigabit , supports simultaneous power

and data transmission, and has a range of up to 100 meters . The LNK-INS901-19V is plug-and-play,

requiring no configuration and offering flexible installation. It is widely used in security surveillance,

wireless access points, industrial terminals, and other scenarios, effectively reducing wiring costs

and improving deployment efficiency.

Industrial Gigabit PoE Splitter Features

► Splits power and data from PoE Input

► One RJ-45 PoE Port (Data & Power In)

► One RJ-45 Port (Data Out)

► One 19VDC Output (2-pin Terminal Block)

► Support IEEE802.3af/at/bt PoE++

► Support 10/100/1000Base-T

► Distance up to 100 meters

► Short-circuit protection for power output

► IP40 rugged metal housing and fanless

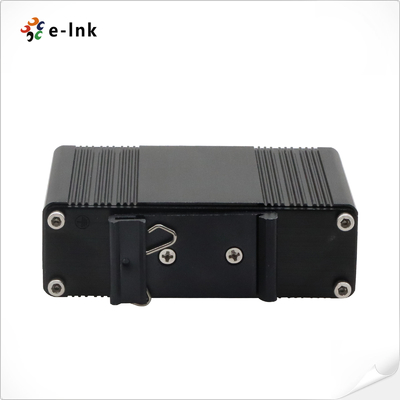

► Support DIN-Rail & Wall-mount installation

► Extensive LED indicators for PoE diagnostics

► Wide operating temperature -40 ~ 80°C

Industrial Gigabit PoE Splitter Technical Indexes
