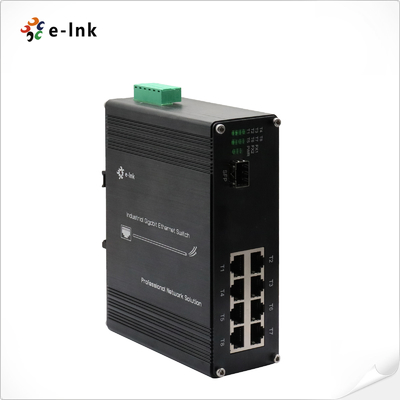

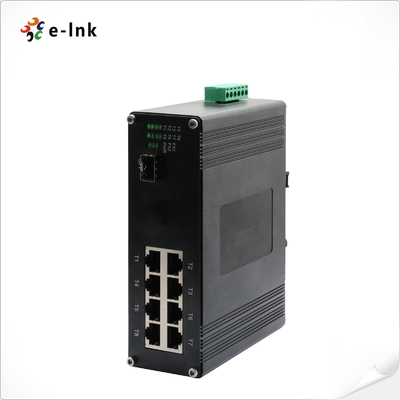

LNK-IMC108 8-Port Industrial Ethernet Switch with Fiber Port for IP Cameras & Wireless APs

बड़ी छवि : LNK-IMC108 8-Port Industrial Ethernet Switch with Fiber Port for IP Cameras & Wireless APs

उत्पाद विवरण:

उत्पत्ति के प्लेस:	चीन
ब्रांड नाम:	E-link
प्रमाणन:	ISO9001, CE, RoHS, FCC
मॉडल संख्या:	एलएनके-आईएमसी008
दस्तावेज:	E-link LNK-IMC108 Series In....0.pdf

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1 टुकड़ा
मूल्य:	USD $110-130
पैकेजिंग विवरण:	औद्योगिक PoE स्विच मानक निर्यात पैकेज
प्रसव के समय:	2~7 कार्य दिवस
भुगतान शर्तें:	पेपैल, टीटी, वेस्टर्न यूनियन, मनीग्राम, एलीपाय, टी/टी, डी/पी, डी/ए, एल/सी
आपूर्ति की क्षमता:	2000pcs प्रति माह

संपर्क करें

विस्तृत उत्पाद विवरण

प्रोडक्ट का नाम:	औद्योगिक 8 पोर्ट PoE स्विच	इनपुट शक्ति:	12~58वीडीसी, रिडंडेंट पावर (6-पिन टर्मिनल ब्लॉक)
बिजली की खपत:	5W मैक्स	(Wxdxh):	150 x 115 x 50 मिमी
वज़न:	0.6 किग्रा	परिचालन तापमान:	-40 ° C से 80 ° C (-40 ° F से 176 ° F)
प्रमुखता देना:	8-Port Industrial Ethernet Switch , Industrial Ethernet Switch With Fiber Port

Industrial 8-Port 10/100Base-TX + 1-Port 100BASE-FX Ethernet Switch

LNK-IMC108 Industrial Ethernet Switch Overview

The LNK-IMC108 is an Industrial Ethernet Switch featuring 8 10/100Base-TX RJ45 ports and

1 100Base-FX fiber port, designed to deliver reliable and stable network connectivity

in harsh industrial environments.

Each RJ45 port supports 10/100Mbps, full/half-duplex and auto MDI/MDI-X, ensuring it works

with a wide range of Ethernet devices. The fibre port works with both single-mode and multi-mode fibres,

using 1 or 2 cores, to allow for long-distance communication between remote sites.

The LNK-IMC108 is designed for industrial uses like IP surveillance, wireless AP bridging,

or machine-to-machine communication. It is made to be strong and durable,

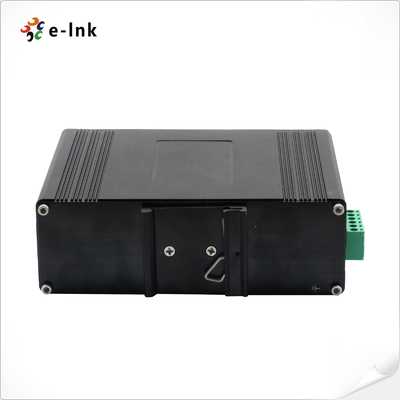

It is also easy to mount on a DIN rail.

It is perfect for expanding networks in factory automation, intelligent transportation, and outdoor areas.

LNK-IMC108 Industrial Ethernet Switch Features

LNK-IMC008 presents the following characteristics:

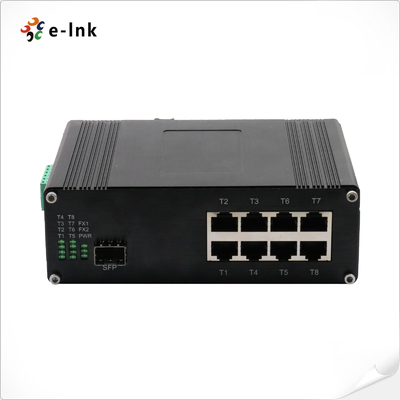

►8x 10/100Base-TX ports + 1x 100Base-FX fiber port
►Supports Single-mode & Multi-mode fiber (1 or 2 core)

►Auto MDI/MDI-X & auto-negotiation for hassle-free setup

►SFP, SC, FC, ST Optional

►Industrial-strength design for harsh environments
►Ideal for IP cameras, wireless APs, and remote networks

LNK-IMC108 Industrial Ethernet Switch Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3x Flow Control
Forward & Filtering Rate:	14,880pps (10Mbps)
Forward & Filtering Rate:	148,800pps (100Mbps)
Packet Buffer Memory:	512K bits
Processing Type:	Store-and-Forward
Address Table Size:	1024 MAC Addresses
Interface
Connector:	8 x RJ45
Optical Port:	1 x 100Base-FX (SFP, SC, FC, ST Optional)
Ethernet Port	RJ45 Port 1 ~ Port 8
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~58VDC , Redundant Power (6-pin Terminal Block)
Power Consumption:	5W Max.
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power1, Power2 Status
Ethernet (Per Port):	Link/Activity
Fiber:	FX1
Dimensions (WxDxH):	150 x 115 x 50 mm
Weight:	0.6Kg
Casing:	Metal Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

LNK-IMC108 Industrial Ethernet Switch Ordering Information

Model	Description
LNK-IMC108	Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Multimode, Dual Fiber, SC, 2KM
LNK-IMC108-20	Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Single Mode, Dual Fiber, SC, 20KM
LNK-IMC108S-20	Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Single Mode, Single Fiber, SC, 20KM
LNK-IMC108F-20	Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Single Mode, Single Fiber, FC, 20KM
LNK-IMC108-SFP	Industrial 8-port 10/100BASE-T + 1-port 100BASE SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
