E-link Industrial 16-Port Gigabit PoE+ Ethernet Switch LNK-IMC016G Hardened DIN-Rail Mount Aluminum Alloy Network Switch for IP

E-link Industrial 16-Port Gigabit PoE+ Ethernet Switch LNK-IMC016G

Hardened DIN-Rail Mount Aluminum Alloy Network Switch for IP

Overview

The LNK-IMC016G represents a robust 16-port Gigabit industrial Ethernet switch engineered

for demanding operational environments. This hardened network solution delivers reliable

connectivity through sixteen 10/100/1000Base-TX RJ45 ports with automatic negotiation and

MDI/MDI-X capability. Designed to withstand extreme conditions, the switch maintains stable

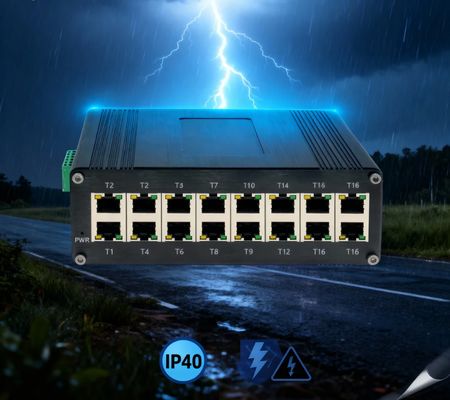

operation across temperatures ranging from -40°C to 80°C while featuring IP40-rated protection

against dust and mechanical impacts.

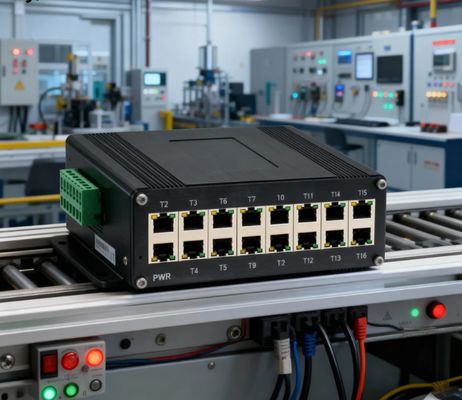

Built with industrial automation and smart infrastructure applications in mind, this unmanaged

Ethernet switch incorporates redundant 12-48V DC power inputs with reverse polarity protection,

ensuring continuous operation in manufacturing facilities, transportation systems, and outdoor

installations. The compact metal housing supports DIN-rail mounting for straightforward

integration into control cabinets and industrial racks.

Advanced switching capabilities include a 40Gbps backplane bandwidth, 16K MAC address

table, and 10K jumbo frame support, enabling seamless data transmission across connected

devices. Compliance

with IEEE 802.3az Energy Efficient Ethernet standards reduces power consumption during low

traffic periods, while the store-and-forward architecture maintains data integrity across all ports.

Certified according to industrial standards including CE, FCC, and RoHS, this Ethernet switch

undergoes rigorous testing to guarantee long-term reliability in harsh environments where

vibration, electrical noise, and temperature fluctuations are common. The solution provides a

cost-effective networking foundation for industrial IoT deployments, machine vision systems,

and automated production lines requiring high-bandwidth connectivity.

Features

High Power PoE+ Performance – Supports IEEE 802.3af/at standards, providing up to 30W

power output per port, ideal for powering high-consumption devices such as PTZ cameras,

wireless APs, and VoIP phones without the need for additional adapters.

Gigabit Network Throughput – Equipped with 16 auto-sensing 10/100/1000Mbps RJ45 ports, this

industrial Ethernet switch ensures seamless data flow and low latency for real-time video

transmission and data-intensive industrial applications.

Durable Industrial Construction – Designed with a robust aluminum enclosure, this hardened PoE

switch offers superior heat dissipation, electrical surge protection, and long-term reliability for

outdoor or factory environments.

Flexible Power Input Design – Supports 48–57V DC dual redundant power inputs to guarantee

uninterrupted operation, even in the event of power supply failure, enhancing network uptime and

system safety.

Extended Operating Temperature – Functions reliably under -40°C to +80°C, allowing deployment in

extreme climates or uncontrolled environments such as roadside cabinets or industrial automation

control rooms.

Energy Efficient and Eco-Friendly – Complies with IEEE 802.3az Energy Efficient Ethernet (EEE),

reducing overall power consumption while maintaining stable high-speed network performance.

Convenient DIN-Rail Mounting – The compact form factor and DIN-Rail mounting option make

installation easy in control panels, network racks, or industrial cabinets, saving valuable space.

Advanced Network Stability – With 40Gbps switching capacity and 16K MAC address table, the

device supports stable and scalable connectivity for industrial communication systems and smart

surveillance networks.

Techncial Indexes

Ordering Information

Application
