Industrial Serial RS232/RS485/RS422 Fiber Optic Modem 2Km on MMF 80Km on SMF

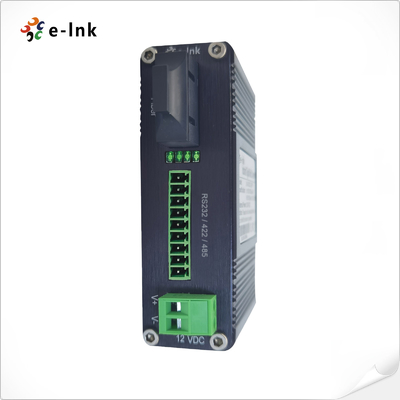

Industrial Serial RS232/RS485/RS422 Fiber Optic Modem

Overview

The LNK-IRS93 series is an industrial-grade fiber optic converter designed to seamlessly

transform RS232, RS485, or RS422 signals into fiber optic links. This conversion extends

the signal range up to 2 km on multimode fiber and 80 km on single-mode fiber. By utilizing

optical fiber communication, the converter effectively eliminates issues such as

electromagnetic interference, ground loop problems, and lightning damage. This

enhancement significantly boosts the reliability, security, and confidentiality of data

transmission. It is ideal for a wide range of applications, including industrial and process

control, stage lighting control, and traffic management systems.

Features

Easy plug-and-play functionality with hot-swappable support

Extends bi-directional RS-232/RS-485/RS-422 signals up to 2 km on multimode fiber (MMF)

and 80 km on single-mode fiber (SMF)

Compliant with EIA/TIA standards for RS-232/485/422, supporting data rates up to 2 Mbps

Fully transparent serial data, with automatic baud rate detection—no manual configuration

needed

Ideal for high-speed serial data transmission, including DMX512 communication in stage

lighting control

Supports both DIN rail and wall-mount installations

Built-in surge and static protection for enhanced durability

Diagnostic LEDs for real-time status monitoring

Designed for harsh environments, with an operating temperature range of -40°C to 75°C

(-40°F to 176°F)

Technical Indexes

Ordering Information

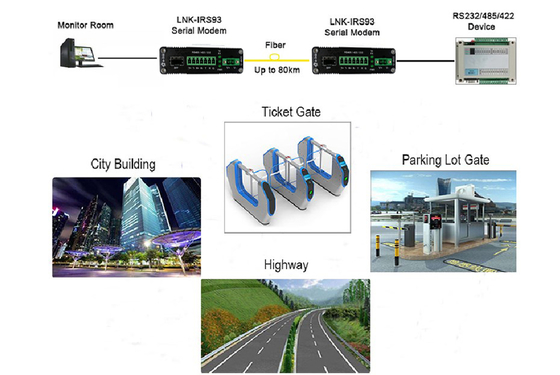

Application
