Mini 4K DVI Fiber Optic Extender with Audio Up to 80km Transmission Range

बड़ी छवि : Mini 4K DVI Fiber Optic Extender with Audio Up to 80km Transmission Range

उत्पाद विवरण:

उत्पत्ति के प्लेस:	ग्वांगडोंग, चीन
ब्रांड नाम:	E-link
प्रमाणन:	CE, RoHS, FCC, ISO9001
मॉडल संख्या:	एलएनके-एमडीए4के
दस्तावेज:	E-link LNK-MDA4K Series Min....0.pdf

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1 टुकड़ा
मूल्य:	$189-$799
पैकेजिंग विवरण:	फाइबर मीडिया कन्वर्टर मानक निर्यात पैकेज
प्रसव के समय:	5-12working दिन
भुगतान शर्तें:	टी/टी, वेस्टर्न यूनियन, मनीग्राम, पेपैल, क्रेडिट कार्ड
आपूर्ति की क्षमता:	1000pcs/महीना

संपर्क करें

विस्तृत उत्पाद विवरण

वीडियो संकल्प:	3840 × 2160@60Hz तक (YUV 4: 2: 0)	संचरण दूरी:	सिंगल-मोड फाइबर पर 80 किमी तक
संकेत प्रारूप:	डीवीआई 1.0, एचडीसीपी आज्ञाकारी	बैंडविड्थ:	10.2 जीबीपीएस
बिजली की खपत:	<5W	DIMENSIONS:	73 x 44 x 17 मिमी
प्रमुखता देना:	Mini 4K DVI Fiber Optic Extender , DVI Fiber Optic Extender 80km

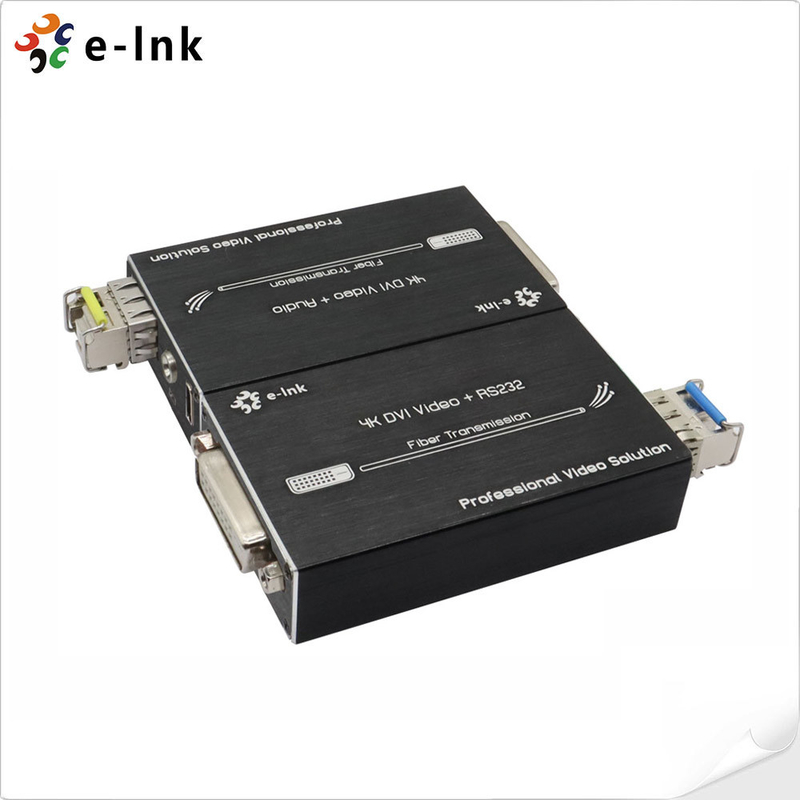

Mini 4K DVI Fiber Optic Extender with Audio Up to 80km Transmission Range

Overview

The Mini 4K DVI Fiber Optic Extender is designed for long-distance transmission of

uncompressed DVI video and stereo audio signals over optical fiber. Supporting resolutions

up to 4K×2K@60Hz with YUV 4:2:0, it ensures zero-latency and lossless performance for

professional AV applications. With a compact form factor and support for distances up to 80km

over single-mode fiber, it is ideal for large-scale displays, control rooms, conference systems,

and home theaters. This extender features HDCP compliance, plug-and-play setup, and robust

EMI/RFI resistance for stable, interference-free signal delivery.

Features

Supports uncompressed 4K×2K@60Hz DVI video transmission over fiber

Transmits DVI and stereo audio signals up to 80km (single-mode)

Compliant with DVI 1.0 and HDCP standards

Supports 3.5mm external stereo audio input/output

Plug-and-play with EDID support and zero configuration

EMI/RFI resistant for stable signal transmission

Compact mini form factor for easy installation

Data bandwidth up to 10.2Gbps

Low power consumption (<5W), powered by USB-C

Technical Indexes

Type of Extender	Fiber Transmitter for DVI signal over Optical Fiber Cable
Input Signals	DVI
Connector	DVI-D
Signal Support	DVI 1.0 format standard and HDCP compliant
Video Support	Up to 720P/960P/1080p@60Hz, 4K*2K@60Hz
Audio Support	Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Chroma Subsampling	Max 38402160@60Hz (4:2:0) Max 38402160@30Hz (4:4:4, 4:2:2)
EDID	Bi-Directional (Forward + Backward) Transmission: Support Dynamic EDID, Plug & Play, no need to learn Single-Directional (Forward) Transmission: Support EDID learning manually
Audio Interface	3.5MM external stereo audio
Fiber Connector	SFP/LC
Bandwidth	10.2Gbps
Transmission Distance	300m (Over OM3 Fiber)
Transmission Distance	Up to 80km (Over Single-mode Fiber)
Operating Temperature	-10 ~ + 50°C
Storage Temperature	-20 ~ + 80°C
Humidity	5% to 90% RH (non-condensing)
MTBF	100,000 hours
Dimension (WxDxH)	2.87 x 1.73 x 0.69in (73x44x17mm)
Weight	60g / 0.13 lb
Power Supply	5V DC (USB-C)
Power dissipation	<5W
Safety Approvals	CE, FCC, Rohs

Ordering Information

Model	Description
Model	Description
LNK-MDA4K-MM	Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK-MDA4K-S20	Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK-MDA4K-S40	Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK-MDA4K-S80	Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
