Micro 24VDC Industrial SFP Optical Switch DIN Rail Type Hardened Grade 2-port RJ45 2 SFP Port

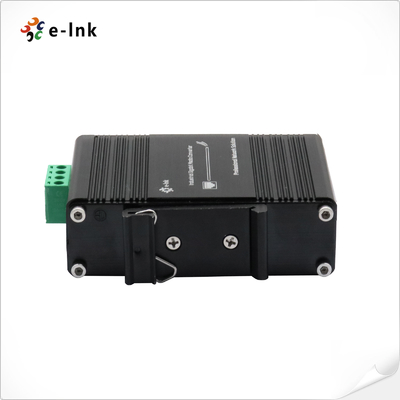

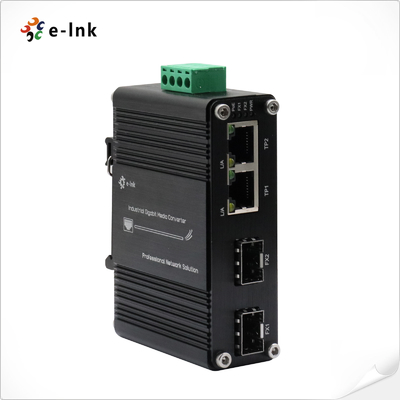

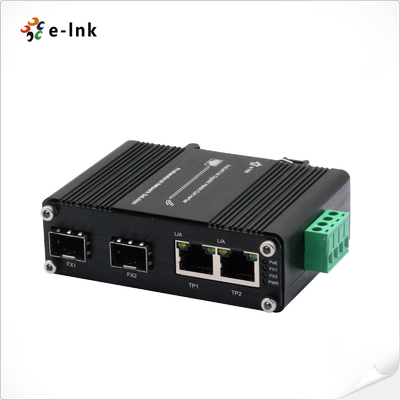

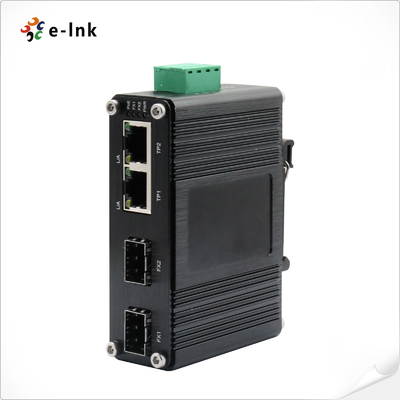

बड़ी छवि : Micro 24VDC Industrial SFP Optical Switch DIN Rail Type Hardened Grade 2-port RJ45 2 SFP Port

उत्पाद विवरण:

उत्पत्ति के प्लेस:	चीन
ब्रांड नाम:	E-link
प्रमाणन:	ISO9001, CE, FCC, RoHS
मॉडल संख्या:	एलएनके-आईएमसी202जी-एसएफपी

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1 पीसी
मूल्य:	negotiable
पैकेजिंग विवरण:	ईथरनेट स्विच मानक निर्यात पैकेज
प्रसव के समय:	7 कार्यदिवस
भुगतान शर्तें:	वेस्टर्न यूनियन, एल/सी, टी/टी, मनीग्राम, पेपैल
आपूर्ति की क्षमता:	20000 पीसी / प्रति माह

संपर्क करें

विस्तृत उत्पाद विवरण

कनेक्टर:	2 एक्स आरजे 45	ऑप्टिकल पोर्ट:	2 एक्स एसएफपी 1000बेस-एक्स या 100बेस-एफएक्स (ऑटो डिटेक्शन)
इनपुट शक्ति:	12~48VDC, 4-पिन टर्मिनल ब्लॉक	आयाम (डब्ल्यूएक्सडीएक्सएच):	95 x 70 x 30 मिमी
वजन:	0.25 किग्रा	आवरण:	एल्यूमीनियम का मामला
बढ़ते विकल्प:	डीआईएन-रेल / वॉल-माउंट	परिचालन तापमान:	-40 डिग्री सेल्सियस से 75 डिग्री सेल्सियस (-40 डिग्री फारेनहाइट से 167 डिग्री फारेनहाइट)
प्रमुखता देना:	Hardened Grade SFP Optical Switch , RJ45 SFP Optical Switch , DIN Rail Type SFP Optical Switch

Mini Industrial 2-port 10/100/1000Base-T + 2-port 100/1000Base-X SFP Ethernet Switch

Overview

The LNK-IMC202G-SFP Series is an industrial-grade DIN rail-mounted Ethernet switch designed for

reliable network connectivity in harsh environments. It features two 10/100/1000BASE-T copper ports

and one 100/1000BASE-X SFP slot, providing flexible deployment options for both copper and fiber

networks.

Built to withstand extreme conditions, this rugged switch operates in a wide temperature range of -40°C

to +75°C and complies with EN55022 EMI standards, ensuring stable performance in industrial applications.

The SFP slot supports various fiber modules (single-mode/multi-mode, 1/2 core), enabling long-distance or

high-bandwidth connections as needed.

With support for both half-duplex and full-duplex modes and a compact DIN rail design, the LNK-IMC202G-SFP

is an ideal solution for industrial automation, surveillance systems, and other demanding networking

environments requiring robust and flexible connectivity.

Features

► Supports Link Fault Pass Through

► Supports Full/Half-duplex, Auto-negotiation

► 9K Bytes Jumbo Frame

► 12~48VDC Redundant Power Supply

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating temperature

► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 2 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

Application

Micro 24VDC Industrial SFP Optical Switch DIN Rail Type Hardened Grade 2-port RJ45 2 SFP Port 0

Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	1 Mbit
Max Packet Length:	9K Bytes
Address Table Size	2K MAC Addresses
Interface
Connector:	2 x RJ45
Optical Port:	2 x SFP 1000Base-X or 100Base-FX (auto detection)
Electrical and Mechanical
Input Power:	12~48VDC, 4-pin terminal block
Power Consumption:	5W Max.
LED Indicators:
PWR:	Power Status
RJ45:	LINK/Activity
SFP:	LINK
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC202G-SFP	Hardened 2-Port 10/1001000BASE-TX to 2x100/1000BASE-X SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
