उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| पावर आउटपुट: | 36W 12VDC (टर्मिनल ब्लॉक) | बिजली की खपत: | 41W अधिकतम |
|---|---|---|---|
| आयाम (डब्ल्यूएक्सडीएक्सएच): | 95 x 70 x 30 मिमी | वजन: | 0.25 किग्रा |
| आवरण: | एल्यूमीनियम का मामला | घुड़सवार: | डीआईएन-रेल/वॉल-माउंट |
| प्रमुखता देना: | 12VDC Output PoE Splitter,12V PoE Splitter,Gigabit Data Transmission PoE Splitter |
||
Industrial Gigabit PoE Splitter Overview

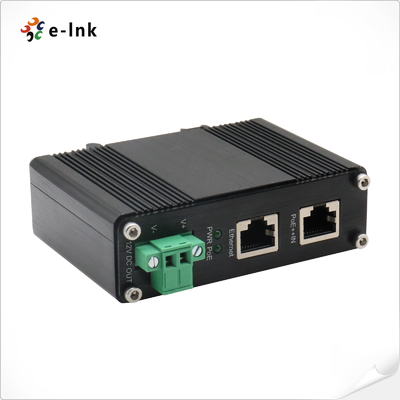

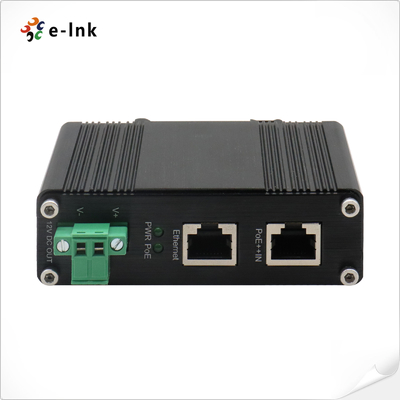

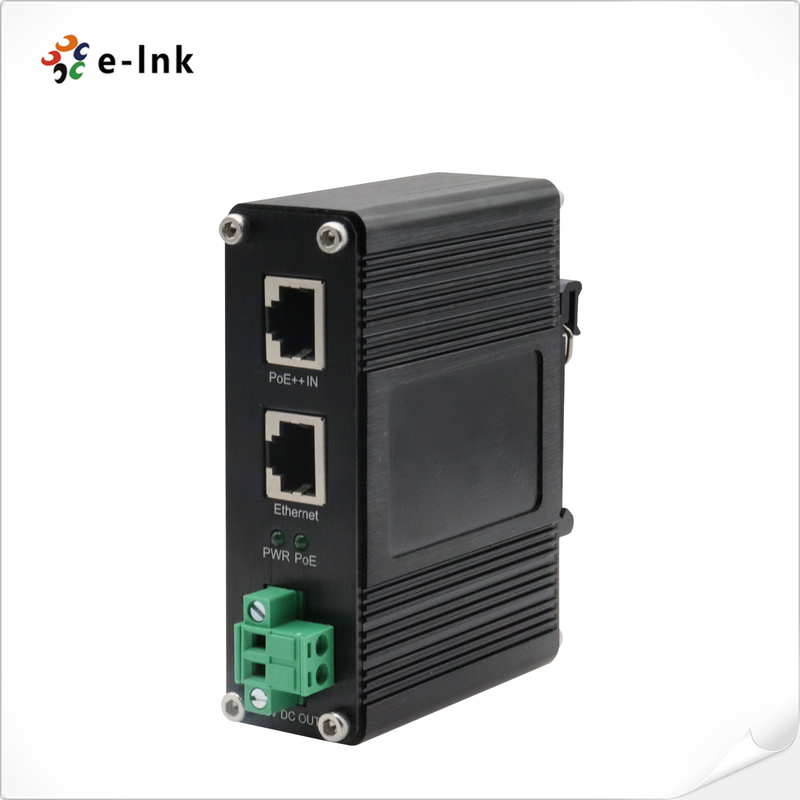

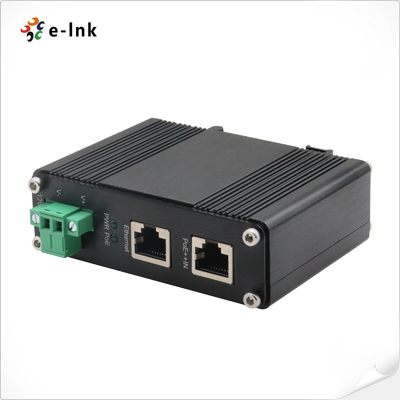

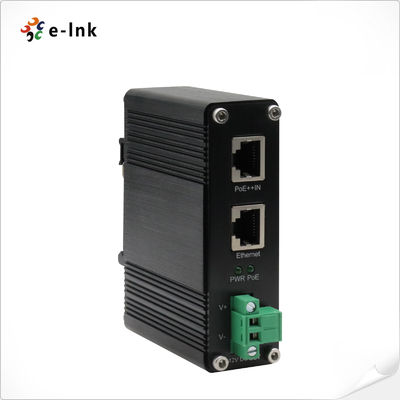

The LNK-INS901-12V series is an industrial-grade Gigabit Ethernet PoE splitter that transmits data
through an RJ-45 port and outputs 12V DC power through terminal blocks to power non-PoE devices.
It supports IEEE802.3af/at/bt PoE power supply standards and can be connected to a PoE switch or used
with the LNK-INJ-48-95W high-power PoE injector to achieve simultaneous data and power transmission
at gigabit speeds and distances up to 100 meters. This product supports plug-and-play operation, requiring
no additional tools or software configuration. It offers flexible installation and strong stability, making it
an ideal choice for deploying non-PoE edge devices, effectively saving wiring and maintenance costs.
It is suitable for a variety of applications, including security monitoring and industrial automation.
Industrial Gigabit PoE Splitter Features
► Splits power and data from PoE Input
► One RJ-45 PoE Port (Data & Power In)
► One RJ-45 Port (Data Out)
► One 12VDC Output (2-pin Terminal Block)
► Support IEEE802.3af/at/bt PoE
► Support 10/100/1000Base-T
► Distance up to 100 meters
► Short-circuit protection for power output
► IP40 rugged metal housing and fanless
► Support DIN-Rail & Wall-mount installation
► Extensive LED indicators for PoE diagnostics
► Wide operating temperature -40 ~ 80°C
Industrial Gigabit PoE Splitter Technical Indexes
| Ethernet | |
| Standards: | IEEE 802.3 10Base-T Ethernet |
| IEEE 802.3u 100Base-TX Fast Ethernet | |
| IEEE 802.3ab 1000Base-T Gigabit Ethernet | |
| IEEE 802.3af Power over Ethernet | |
| IEEE 802.3at Power over Ethernet Plus | |
| IEEE 802.3bt 4-pair Power over Ethernet | |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 1,488,000pps (1000Mbps) |
| Cabling: | 1000Base-T: Cat5 or above |
| Maximum Distance: | Cat5 UTP up to 100m |
| Interface: | “PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T |
| “Data” Out Port: 1 x RJ-45 10/100/1000Base-T | |
| DC Out Plug Connector: 1 removable 2-Pin terminal block | |
| Power over Ethernet | |
| PoE Standard: | IEEE 802.3af/at/bt Power over Ethernet |
| Number of devices that can be powered: |
1 (12VDC) (Vary on device’s power requirement; cannot be over 36 watts.) |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical | |
| Power Output: | 36W 12VDC (Terminal Block) |
| Power Consumption: | 41W Max. |
| LED Indicators: | |
| PWR: | 12VDC Power OUT |
| POE: | PoE Power IN |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Regulatory Approvals | |
| ISO9001 | |
| FCC part 15, Class A | |
| EN55022:2006+A1: 2007 Class A | |
| Surge Protection: | |
| RJ45: 1KV | |
| Power: 500W | |
| ESD: 4KV/8KV | |
| Model | Description |
| LNK-INS901-12V | Industrial IEEE802.3bt Gigabit PoE Splitter Output Voltage 12VDC, maximum output of 36W at 12VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |

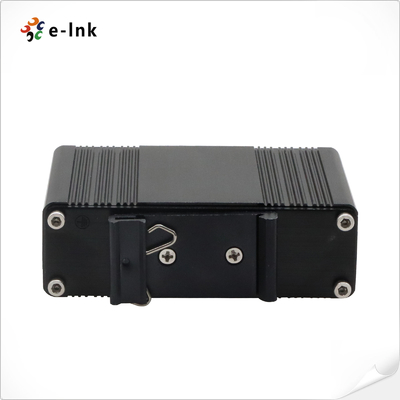

| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
